Name: BSS84V-7
Brand: Diodes Incorporated
SKU: BSS84V-7
Price: 0.14000 USD
Availability: InStock

new-10%

BSS84V-7

Manufacturer part number:BSS84V-7

Manufacturer:Diodes Incorporated

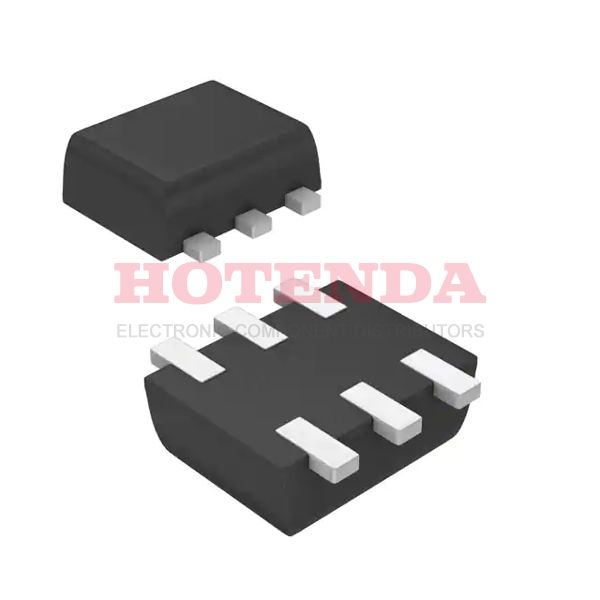

Description:MOSFET 2P-CH 50V 0.13A SOT-563

Case Package:SOT-23

Datasheet:BSS84V-7 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	19 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SOT-563, SOT-666
Number of Pins	6
Weight	3.005049mg
Transistor Element Material	SILICON
Operating Temperature	-55°C~150°C TJ
Packaging	Tape & Reel (TR)
Published	2013
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	6
ECCN Code	EAR99
Resistance	10Ohm
Max Power Dissipation	150mW
Terminal Form	FLAT
Peak Reflow Temperature (Cel)	260
[email protected] Reflow Temperature-Max (s)	40
Pin Count	6
Number of Elements	2
Element Configuration	Dual
Operating Mode	ENHANCEMENT MODE
Power Dissipation	150mW
Turn On Delay Time	10 ns
FET Type	2 P-Channel (Dual)
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	10 Ω @ 100mA, 5V
Vgs(th) (Max) @ Id	2V @ 1mA
Input Capacitance (Ciss) (Max) @ Vds	45pF @ 25V
Drain to Source Voltage (Vdss)	50V
Turn-Off Delay Time	18 ns
Continuous Drain Current (ID)	130mA
Gate to Source Voltage (Vgs)	15V
Drain Current-Max (Abs) (ID)	0.13A
Drain to Source Breakdown Voltage	-50V
FET Technology	METAL-OXIDE SEMICONDUCTOR
FET Feature	Logic Level Gate
Height	600μm
Length	1.6mm
Width	1.2mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

BSS84V-7 Product Details

Description:

The BSS84V-7 is a MOSFET 2P-CH 50V 0.13A SOT-563 from Diodes Inc. It is a two-terminal, field-effect transistor (FET) that is designed to provide high-speed switching and low-power dissipation. It is suitable for use in a wide range of applications, including power management, audio, and automotive.

Features:

• Low on-resistance
• Low gate charge
• Low input capacitance
• High-speed switching
• Low-power dissipation
• RoHS compliant
• Halogen-free
• SOT-563 package

Applications:

The BSS84V-7 is suitable for use in a wide range of applications, including:
• Power management
• Audio
• Automotive
• Industrial
• Telecommunications
• Consumer electronics
• Computers and peripherals
