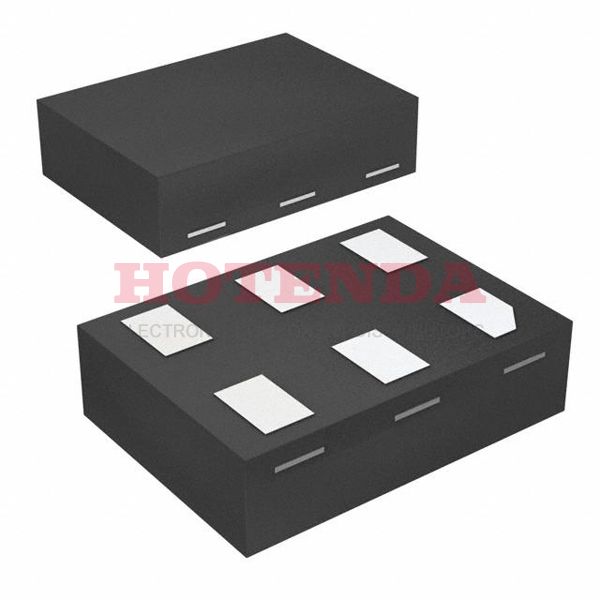

74AUP1G00FZ4-7 Overview
Due to its 6-XFDFN packaging, the part is convenient for international shipping. High reliability is achieved by using advanced packaging method Cut Tape (CT). NAND Gate logic is the basis of its operation. This part needs a voltage of 0.8V~3.6V to function properly. An extended operating temperature of -40°C~125°C TA degrees Celsius. Part Surface Mount is mounted. High and low output current states are both 4mA 4mA. The series 74AUP contains it. A total of 6 terminations have been recorded. It has 1 functions that enhance user experience significantly. In AUP/ULP/V, this chip plays an important role. Part bodies are injected with 6 pins. There are many applications for this logic device, mounted at Surface Mount. You can find the functions of the 6 pins in the datasheets. It supports inputs of 2. As the part is in a quiescent state, it has 500nA current flowing through it. A 30pF load capacitance is present in the part. To supply the device, a voltage of 0.8V must be applied. A method of industry TAPE AND REEL is included in the package. A device with 1 outputs is available.
74AUP1G00FZ4-7 Features
NAND Gate Logic Type
Operating Temperature: -40°C~125°C TA
AUP/ULP/V Family
Quiescent Current: 500nA
74AUP1G00FZ4-7 Applications
There are a lot of Diodes Incorporated
74AUP1G00FZ4-7 Gates and Inverters applications.
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
