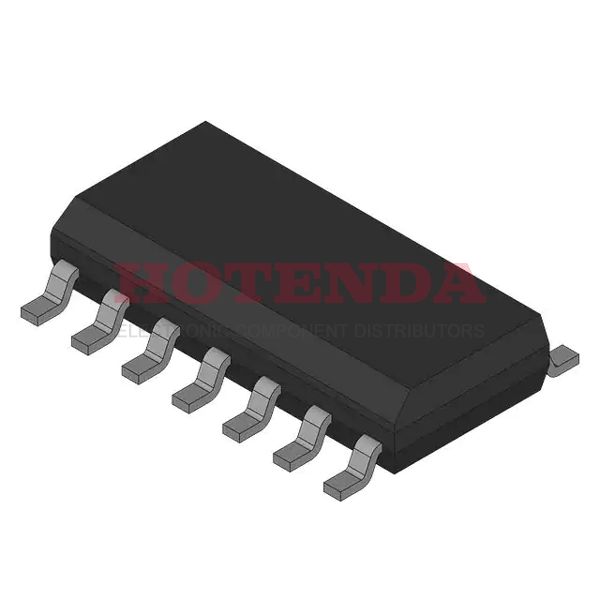

74HC03D,653 Overview
The part is convenient to ship overseas because it is packed in a 14-SOIC (0.154, 3.90mm Width). The advanced packaging method Tape & Reel (TR) provides high reliability. A NAND Gate logic principle governs its operation. Voltage 2V~6V is needed to ensure the part's full functionality. Operational temperature extended around -40°C~125°C. Mounted in Surface Mount. Output current is - 5.2mA in the high and low states. 74HC is the series it belongs to. The total number of terminations is 14. There are 4 functions that significantly improve the user experience. As part of HC/UH, this chip is used. Try searching with 74HC03 to find device variants. A total of 14 pins are injected into the body of the part. Logic devices with Surface Mount mounting are widely used in many applications. Datasheets for functions of 14 pins are available. Inputs are limited to 2. Quiescent parts have 2μA current flowing through them. Its output current is rated at 5.2mA. There are 1 outputs on the device. There is a specified operating supply voltage for the chip of 5V volts. 4 gates are used in logical operations. There are Open Drain features in it. A part with 8 input lines performs better.
74HC03D,653 Features
NAND Gate Logic Type
Operating Temperature: -40°C~125°C
HC/UH Family
Quiescent Current: 2μA
Output Current: 5.2mA
4 Gates
74HC03D,653 Applications
There are a lot of Nexperia USA Inc.
74HC03D,653 Gates and Inverters applications.
- Electric grinding wheel
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
