74HCT20D,652 Overview

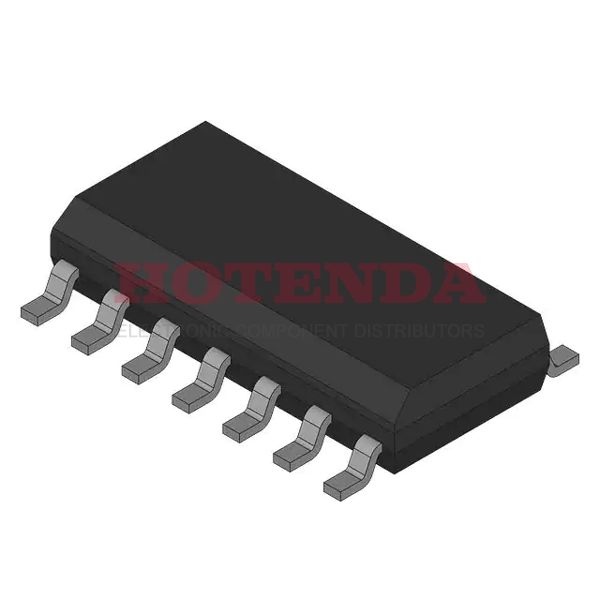

Packed in 14-SOIC (0.154, 3.90mm Width), the part is convenient for shipping overseas. Advanced packaging method Tube is used to provide high reliability. It works based on the NAND Gate logic principle. To ensure the part's full function, a voltage of 4.5V~5.5V is needed. Extended operating temperature around -40°C~125°C. The part is mounted in Surface Mount. The high and low state of output current is 4mA 4mA. It comes from the 74HCT series. There are 14 terminations totally. The part has 2 functions that significantly boost the user experience. It represents the HCT product family. If you are looking for device variants, try search with 74HCT20. 14 pins are injected into the part body. The part supports 4 inputs. This device is composed of 2 circuits. The supply voltage should not exceed 5.5V. The maximum current in standby mode is 2μA.
74HCT20D,652 Features
NAND Gate Logic Type
Operating Temperature: -40°C~125°C
HCT Family
74HCT20D,652 Applications
There are a lot of Nexperia USA Inc.
74HCT20D,652 Gates and Inverters applications.
- Air conditioner
- Home theater
- Electric grinding wheel
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
