Name: B32922C3333K289
Brand: TDK Electronics Inc.
SKU: B32922C3333K289
Price: 0.76000 USD
Availability: InStock

new-10%

B32922C3333K289

Manufacturer part number:B32922C3333K289

Manufacturer:TDK Electronics Inc.

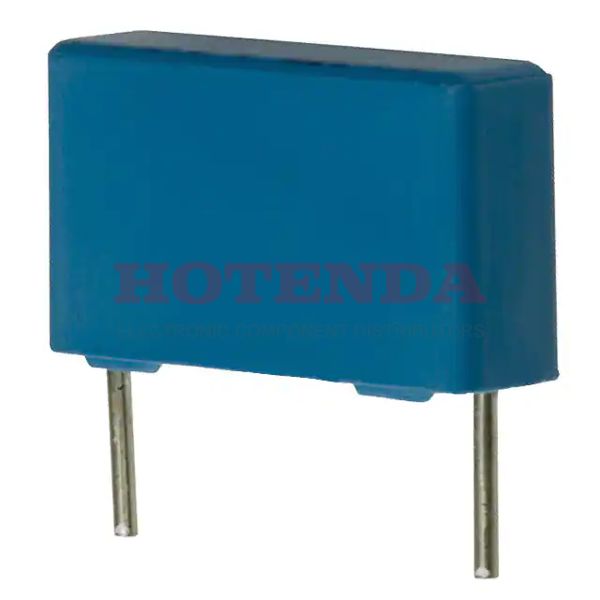

Description:B32922 0.033μF Film Capacitor ±10% Radial PC Pins 630V-DC 305V-AC Polypropylene (PP)

Case Package:SOT-23

Datasheet:B32922C3333K289 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polypropylene (PP)
Operating Temperature	-40°C~110°C
Packaging	Tape & Box (TB)
Published	2016
Series	B32922
Size / Dimension	0.709Lx0.197W 18.00mmx5.00mm
Tolerance	±10%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
Applications	EMI, RFI Suppression
HTS Code	8532.25.00.70
Capacitance	0.033μF
Voltage - Rated DC	630V
Packing Method	AMMO PACK
Terminal Pitch	15mm
Reach Compliance Code	not_compliant
Reference Standard	IEC60384-14
Voltage - Rated AC	305V
Capacitor Type	FILM CAPACITOR
Lead Spacing	0.591 15.00mm
Rated (DC) Voltage (URdc)	630V
Size Code	7141
Rated (AC) Voltage (URac)	305V
Height Seated (Max)	0.413 10.50mm
Length	18mm
Width	10.5mm
RoHS Status	ROHS3 Compliant
Ratings	X2

B32922C3333K289 Product Details

B32922C3333K289 Overview

For systems to operate, a rated (DC) voltage (URdc) of 630V must be applied internally.A 0.591 15.00mm lead spacing is used in this electrical device.System power requires an AC voltage rating of 305V (URac).Devices with a -40°C~110°C temperature capability can be operated.
