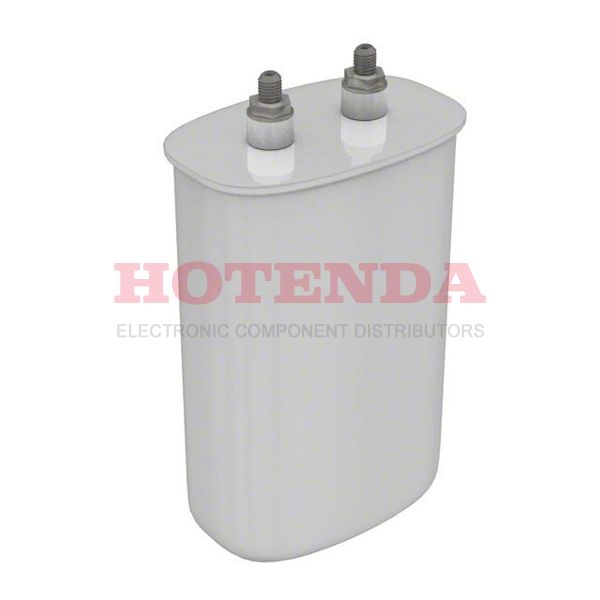

Name: SCRN251R-F
Brand: Cornell Dubilier Electronics (CDE)
SKU: SCRN251R-F
Price: 61.20000 USD
Availability: InStock

new

SCRN251R-F

Manufacturer part number:SCRN251R-F

Manufacturer:Cornell Dubilier Electronics (CDE)

Description:SCR 3μF Film Capacitor ±10% Radial, Can Threaded, Male 2kV-DC 2000Vpk 2KVPK-AC Paper, Metallized Brackets, Chassis Mount, Holder

Case Package:SOT-23

Datasheet:SCRN251R-F Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Mount	Brackets, Chassis Mount, Holder
Mounting Type	Chassis Mount, Requires Holder/Bracket
Package / Case	Radial, Can
Terminal Shape	BINDING POST
Dielectric Material	Paper, Metallized
Operating Temperature	-40°C~80°C
Packaging	Bulk
Published	2010
Series	SCR
Size / Dimension	2.910Lx1.910W 73.91mmx48.51mm Lip
Tolerance	±10%
JESD-609 Code	e2
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	Threaded, Male
ECCN Code	EAR99
Terminal Finish	Tin/Copper (Sn/Cu)
Applications	Commutation; High Frequency, Switching; High Pulse, DV/DT
Additional Feature	RATED AC VOLTAGE (V): 2000
HTS Code	8532.25.00.70
Capacitance	3μF
Voltage - Rated DC	2kV
Depth	48.514mm
Voltage - Rated AC	2000Vpk 2KVPK
Lead Pitch	35.052mm
Capacitor Type	FILM CAPACITOR
Lead Spacing	1.380 35.05mm
Rated (DC) Voltage (URdc)	2000V
Height	48.514mm
Height Seated (Max)	4.810 122.17mm
Length	73.914mm
RoHS Status	ROHS3 Compliant

SCRN251R-F Product Details

SCRN251R-F Overview

To function, systems require a rated (DC) voltage (URdc) of 2000V.This electrical device has a 1.380 35.05mm lead spacing.Temperatures of -40°C~80°C are suitable for operating the device.
