FCP2416H224G

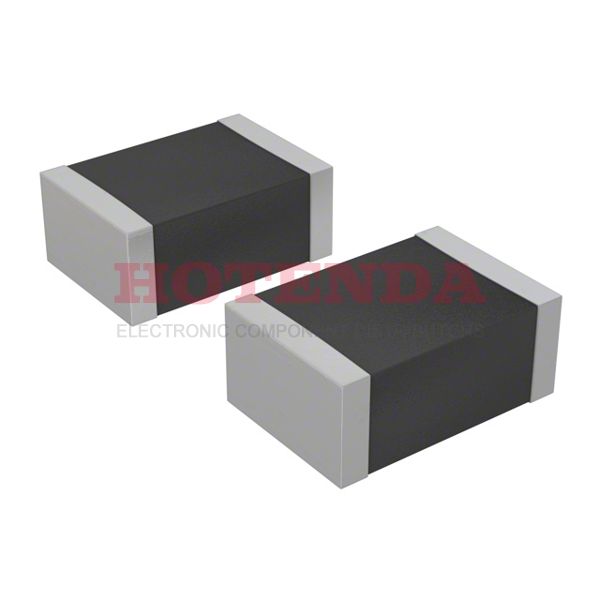

  • FCP2416H224G - FCP 0.22μF Film Capacitor ±2% 2416 (6041 Metric) Solder Pads 50V-DC Polyphenylene Sulfide (PPS) Surface Mount
  • FCP2416H224G - FCP 0.22μF Film Capacitor ±2% 2416 (6041 Metric) Solder Pads 50V-DC Polyphenylene Sulfide (PPS) Surface Mount

FCP2416H224G

FCP2416H224G

Cornell Dubilier Electronics (CDE)

FCP 0.22μF Film Capacitor ±2% 2416 (6041 Metric) Solder Pads 50V-DC Polyphenylene Sulfide (PPS) Surface Mount

SOT-23

FCP2416H224G Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 2416 (6041 Metric)
Terminal Shape WRAPAROUND
Dielectric MaterialPolyphenylene Sulfide (PPS)
Operating Temperature-55°C~125°C
PackagingBulk
Published 2013
Series FCP
Size / Dimension 0.236Lx0.161W 6.00mmx4.10mm
Tolerance ±2%
JESD-609 Code e1
Pbfree Code yes
Part StatusDiscontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Solder Pads
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications High Frequency, Switching
HTS Code8532.25.00.45
Capacitance 0.22μF
Voltage - Rated DC 50V
Packing Method TR
Reach Compliance Code unknown
Case Code (Metric) 6041
Case Code (Imperial) 2416
Capacitor Type FILM CAPACITOR
Dielectric PPS
Height Seated (Max) 0.118 3.00mm
Length 6mm
Width 4.1mm
RoHS StatusROHS3 Compliant
In-Stock:2627 items

Pricing & Ordering

QuantityUnit PriceExt. Price
300$0.80800$242.4

FCP2416H224G Product Details

FCP2416H224G Overview


-55°C~125°C is the maximum temperature at which the device can operate.

FCP2416H224G Features



FCP2416H224G Applications


There are a lot of Cornell Dubilier Electronics (CDE) FCP2416H224G applications of film capacitors.

  • Switch-mode power supplies
  • RF Modules
  • VCO's
  • Global positioning systems
  • Electronic ballasts
  • Test and measuring equipment
  • TV and monitor sets
  • Filtering
  • Coupling, decoupling
  • RFI for automotive
