ECQ-U2A824ML

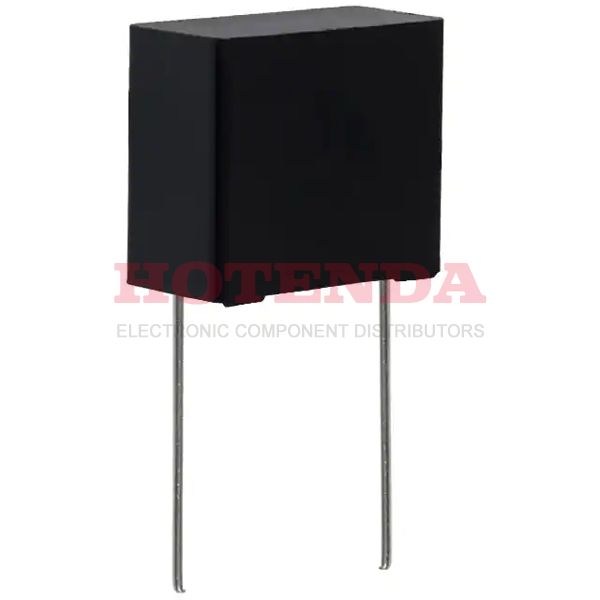

  • ECQ-U2A824ML - ECQ-UL 0.82μF Film Capacitor ±20% Radial PC Pins 909mV-DC 275V-AC Polyester, Metallized PCB, Through Hole
  • ECQ-U2A824ML - ECQ-UL 0.82μF Film Capacitor ±20% Radial PC Pins 909mV-DC 275V-AC Polyester, Metallized PCB, Through Hole

ECQ-U2A824ML

ECQ-U2A824ML

Panasonic Electronic Components

ECQ-UL 0.82μF Film Capacitor ±20% Radial PC Pins 909mV-DC 275V-AC Polyester, Metallized PCB, Through Hole

SOT-23

ECQ-U2A824ML Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 17 Weeks
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Number of Pins 2
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~100°C
PackagingBulk
Published 2011
Series ECQ-UL
Size / Dimension 1.004Lx0.472W 25.50mmx12.00mm
Tolerance ±20%
JESD-609 Code e3
Part StatusNot For New Designs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications EMI, RFI Suppression
Capacitance 0.82μF
Voltage - Rated DC 909mV
Depth 12mm
Reference Standard IEC60384-14
Voltage - Rated AC 275V
Lead Pitch 22.5mm
Capacitor Type FILM CAPACITOR
Lead Length 20mm
Dielectric PET
Lead Spacing0.886 22.50mm
Multilayer No
Lead Diameter 800 μm
Lead/Base Style Straight
Height 12mm
Height Seated (Max) 0.886 22.50mm
Radiation HardeningNo
REACH SVHC Unknown
RoHS StatusRoHS Compliant
Ratings X2
In-Stock:1242 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.09000$1.09
10$0.84600$8.46
100$0.62020$62.02
500$0.49228$246.14

ECQ-U2A824ML Product Details

ECQ-U2A824ML Overview


A 0.886 22.50mm lead spacing is used in this electrical device.-40°C~100°C is the maximum temperature at which the device can operate.

ECQ-U2A824ML Features



ECQ-U2A824ML Applications


There are a lot of Panasonic Electronic Components ECQ-U2A824ML applications of film capacitors.

  • TV and monitor sets
  • Satellite TV
  • Bypassing
  • Lighting
  • Switch mode power supplies
  • VCO's
  • IGBT
  • Test and measuring equipment
  • Compact fluorescent lamps (CFL)
  • Global positioning systems
