DPFF16D1J-F

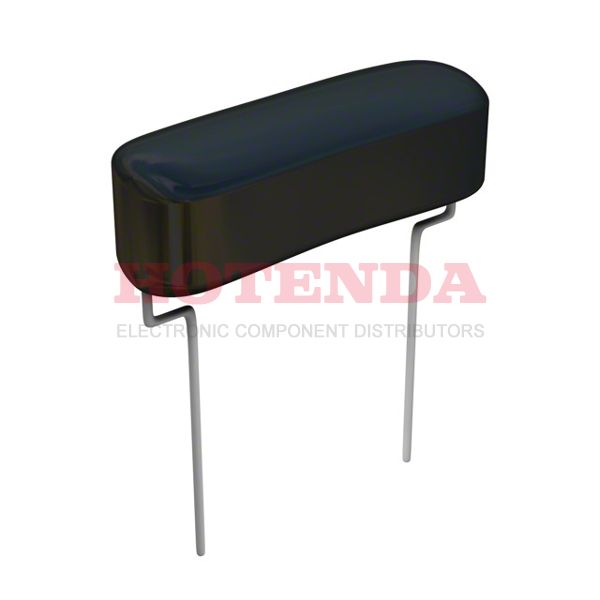

  • DPFF16D1J-F - DPFF 1000pF Film Capacitor ±5% Radial PC Pins 1.6kV-DC 500V-AC Polypropylene (PP), Metallized Through Hole
  • DPFF16D1J-F - DPFF 1000pF Film Capacitor ±5% Radial PC Pins 1.6kV-DC 500V-AC Polypropylene (PP), Metallized Through Hole

DPFF16D1J-F

DPFF16D1J-F

Cornell Dubilier Electronics (CDE)

DPFF 1000pF Film Capacitor ±5% Radial PC Pins 1.6kV-DC 500V-AC Polypropylene (PP), Metallized Through Hole

SOT-23

DPFF16D1J-F Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 12 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-55°C~105°C
PackagingBulk
Published 2012
Series DPFF
Size / Dimension 1.252Lx0.291W 31.80mmx7.40mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications High Pulse, DV/DT
HTS Code8532.25.00.70
Capacitance 1000pF
Voltage - Rated DC 1.6kV
Voltage - Rated AC 500V
Lead Pitch 18.3mm
Capacitor Type FILM CAPACITOR
Dielectric PP
Lead Spacing0.720 18.30mm
Rated (DC) Voltage (URdc) 1600V
Lead Diameter 800 μm
Life (Hours) 500 hours
Height Seated (Max) 0.331 8.40mm
Length 31.8mm
Width 7.4mm
REACH SVHC Unknown
RoHS StatusROHS3 Compliant
In-Stock:1642 items

DPFF16D1J-F Product Details

DPFF16D1J-F Overview


For systems to function, the rated (DC) voltage (URdc) must be 1600V.0.720 18.30mm is the lead spacing of this electrical device.A temperature of -55°C~105°C is suitable for operation of the device.

DPFF16D1J-F Features


a rated (DC) voltage (URdc) of 1600V

DPFF16D1J-F Applications


There are a lot of Cornell Dubilier Electronics (CDE) DPFF16D1J-F applications of film capacitors.

  • Satellite TV
  • Audio/video equipment
  • Electronic ballasts
  • RFI for automotive
  • Mobile communications
  • Switch mode power supplies
  • Switch-mode power supplies
  • Snubbering
  • Coupling, decoupling
  • Bypassing
