Name: 0901481210
Brand: Molex
SKU: 0901481210
Price: 4.49000 USD
Availability: InStock

new-10%

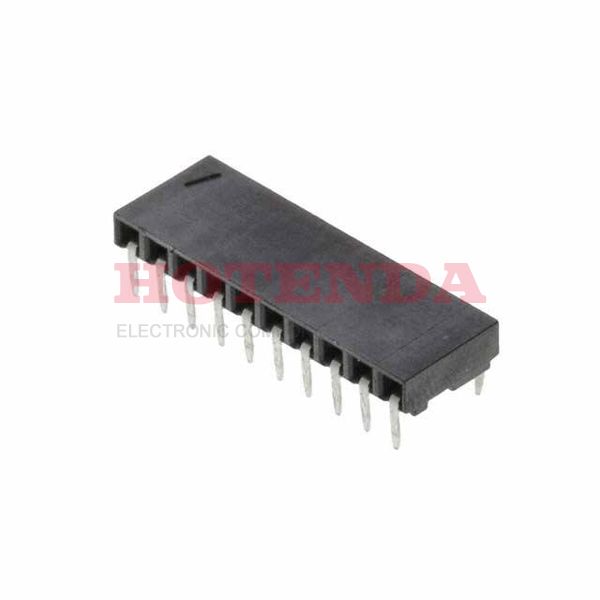

0901481210

Manufacturer part number:0901481210

Manufacturer:Molex

Description:1 Rows Receptacle Solder Phosphor Bronze Through Hole, Right Angle Tube Gold Polybutylene Terephthalate (PBT), Polyester, Glass Filled 10 Positions Female Socket

Case Package:SOT-23

Datasheet:0901481210 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	13 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Operating Temperature	-55°C~105°C
Packaging	Tube
Series	C-Grid 90148
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	10
Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Rows	1
Voltage - Rated	350V
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	3A
Insulation Height	0.130 3.30mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Contact Length - Post	0.114 2.90mm
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15.0μin 0.38μm
Contact Finish Thickness - Post	118.1μin 3.00μm
RoHS Status	ROHS3 Compliant

0901481210 Product Details

0901481210 Overview

Packaging for this item is Receptacle.There is a mounting type of Through Hole, Right Angle for this device.It is necessary to use a Tube case for packaging the product.This product is part of the C-Grid 90148 Series.A possible application for the device is Automotive, General Purpose, Lighting, Medical, Telecommunications.In this case, the device operates at -55°C~105°C Operating Temperature.
