929974-01-11-RK

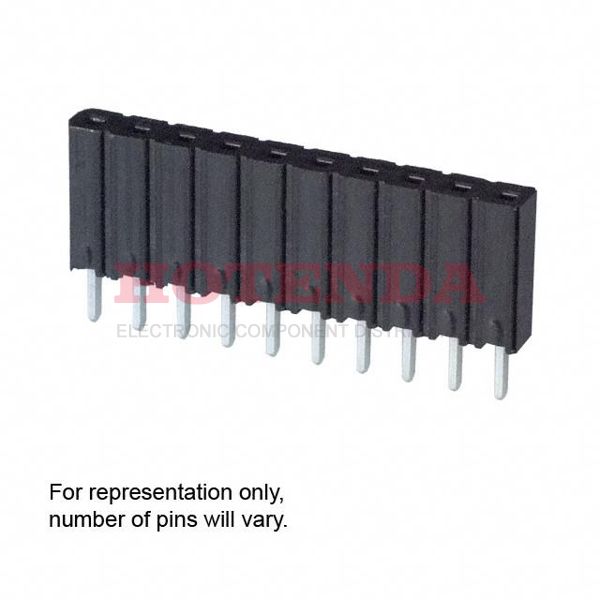

  • 929974-01-11-RK - 1 Rows Receptacle Solder Copper Alloy Through Hole Bulk Tin Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled 11 Positions Forked
  • 929974-01-11-RK - 1 Rows Receptacle Solder Copper Alloy Through Hole Bulk Tin Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled 11 Positions Forked

929974-01-11-RK

929974-01-11-RK

3M

1 Rows Receptacle Solder Copper Alloy Through Hole Bulk Tin Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled 11 Positions Forked

SOT-23

929974-01-11-RK Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 3 Weeks
Contact MaterialCopper Alloy
Contact PlatingTin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Housing Material Nylon
Operating Temperature-40°C~105°C
PackagingBulk
Published 2009
Series 929
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Receptacle
Number of Positions 11
Color Black
Number of Rows 1
Gender Female
Voltage - Rated 1500V
Fastening TypePush-Pull
Contact Finish - Mating Tin
Contact Type Forked
Current Rating (Amps) 2A
Pitch 2.54mm
Insulation Height 0.325 8.25mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.125 3.18mm
Number of Contacts 11
Contact Finish - Post Tin
Housing Color Black
Height 8.26mm
Length 27.9mm
Width 2.54mm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Lead Free Lead Free
In-Stock:6223 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.934925$1.934925
10$1.825401$18.25401
100$1.722076$172.2076
500$1.624600$812.3
1000$1.532641$1532.641

929974-01-11-RK Product Details

929974-01-11-RK Overview


The product comes in a package of Receptacle.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the 929 Series.It is mounted by Through Hole.It operates at an operating temperature of -40°C~105°C.

929974-01-11-RK Features


929 series


929974-01-11-RK Applications


There are a lot of 3M
929974-01-11-RK Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
