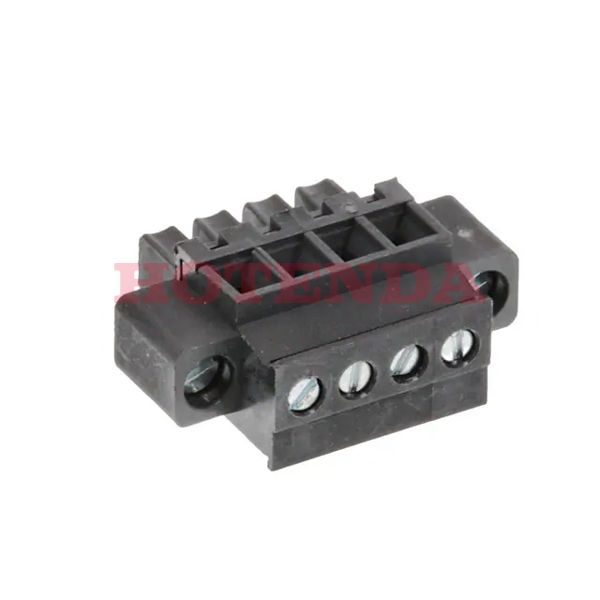

0395172004

0395172004

0395172004

Molex

0395172004 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Molex stock available on our website

SOT-23

0395172004 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 12 Weeks
Contact MaterialPhosphor Bronze
Contact PlatingTin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA66), Nylon 6/6
Operating Temperature-40°C~115°C
PackagingBulk
Series Eurostyle ESE 39517
Feature Mating Flange
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Type Plug, Female Sockets
Number of Positions 4
Max Operating Temperature115°C
Min Operating Temperature -40°C
Color Black
Number of Rows 1
Pitch 0.150 3.81mm
Orientation Vertical
Insulation Height 0.740 18.80mm
Current Rating8A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 4
Housing Color Black
Voltage 300V
Number of Circuits 3
Number of Levels 1
Current 8A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 16 AWG
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 16-30 AWG
Current - UL 8A
Torque - Screw 0.23 Nm (2.0 Lb-In)
Positions Per Level 4
Plug Wire Entry 270°
Wire Strip Length 6.5mm
Number of Positions Per Level 4
Material Flammability Rating UL94 V-0
RoHS StatusROHS3 Compliant
In-Stock:4092 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.580038$1.580038
10$1.490602$14.90602
100$1.406228$140.6228
500$1.326631$663.3155
1000$1.251539$1251.539

0395172004 Product Details

0395172004 Overview


Free Hanging (In-Line) is the mount type.A Bulk case is used to package the product.This is from the Eurostyle ESE 39517 Series.Ideally, it should be used at temperatures below 115°C.There must be a minimum temperature of -40°C.A number of advantages can be derived from its Mating Flange feature.In this case, Cable, Free Hanging mounts the part.There are 3 circuits in the part.-40°C~115°C Operating Temperature is used by the device.It is a part that shares many benefits with other products from the Plug, Female Sockets line.

0395172004 Features


Eurostyle ESE 39517 series

0395172004 Applications


There are a lot of Molex 0395172004 Terminal Blocks applications.

  • Embedded systems
  • Data Technology
  • Electrical substations
  • Transportation
  • Communication
  • Blowers
  • Refrigeration control
  • Automotive Electronics
  • Telecommunications
  • Industrial Automation
