Name: 1756155
Brand: Phoenix Contact
SKU: 1756155
Price: 7.30000 USD
Availability: InStock

new-10%

1756155

Manufacturer part number:1756155

Manufacturer:Phoenix Contact

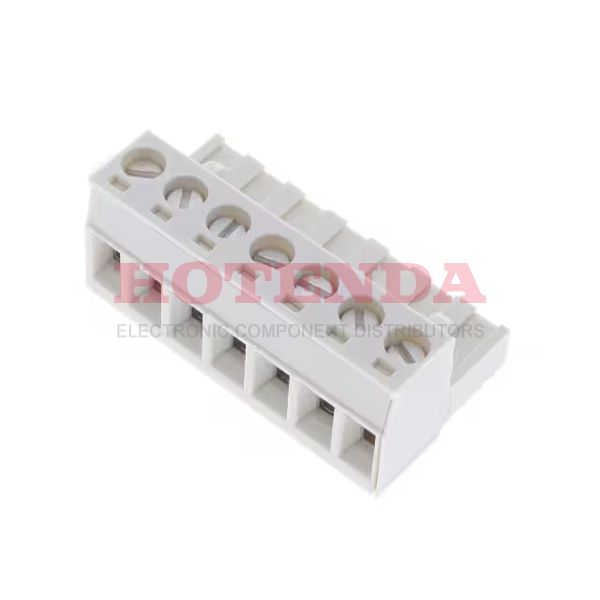

Description:Bulk 0.197 5.00mm Cream 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON MSTB Tin

Case Package:SOT-23

Datasheet:1756155 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Packaging	Bulk
Series	COMBICON MSTB
Published	2011
Feature	Retention Latches (Non-Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Connector Type	Screw
Type	Plug, Female Sockets
Number of Positions	7
Color	Cream
Voltage - Rated	250V
Pitch	0.197 5.00mm
Insulation Height	0.591 15.00mm
Reach Compliance Code	not_compliant
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	15A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-30 AWG
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
RoHS Status	RoHS Compliant

1756155 Product Details

1756155 Overview

The product comes in a package of Screw.Free Hanging (In-Line) is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the COMBICON MSTB Series.It is more powerful in many ways due to its Retention Latches (Non-Wire Side) feature.It is mounted by Free Hanging.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.
