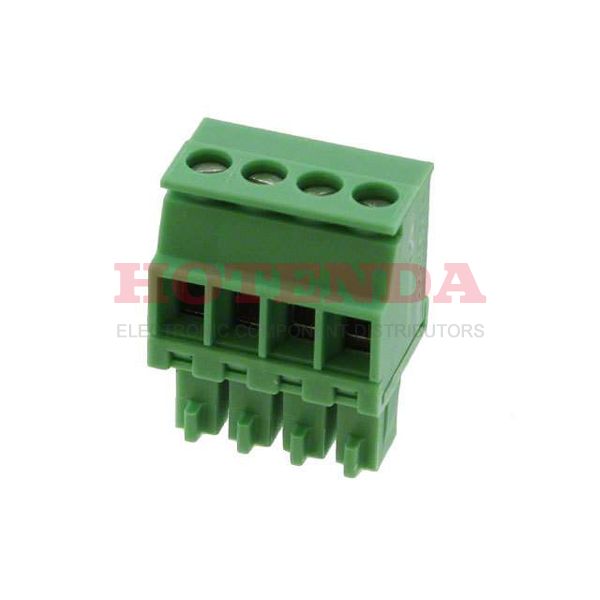

Name: 1863178
Brand: Phoenix Contact
SKU: 1863178
Price: 5.30000 USD
Availability: InStock

new-10%

1863178

Manufacturer part number:1863178

Manufacturer:Phoenix Contact

Description:1863178 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1863178 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	99.999994g
Packaging	Bulk
Published	2008
Series	COMBICON MCVR
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated DC	160V
Pitch	0.138 3.50mm
Orientation	Straight
Depth	10.4mm
Insulation Height	0.752 19.10mm
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Voltage - Rated AC	160V
Approval Agency	CB, UL, VDE, cULus
Lead Pitch	3.5mm
Number of Contacts	4
Voltage	300V
Max Supply Voltage	160V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	320V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	4
Safety Approval	CB; CCA; CUL; GOST; UL; VDE
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.14-1.5mm2
Screw Size	M2
Stripping Length	7mm
Height	12.5mm
Length	15.73mm
Width	19.1mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1863178 Product Details

1863178 Overview

Packaging is Screw, Socket.There is a Free Hanging (In-Line) mounting type for the device.An orange Bulk case is used to package the product.A member of the COMBICON MCVR Series.The part is mounted by Cable, Free Hanging.This chip should not be supplied with voltages greater than zero.The benefts of this part are similar to those of other Plug, Female Sockets products.
