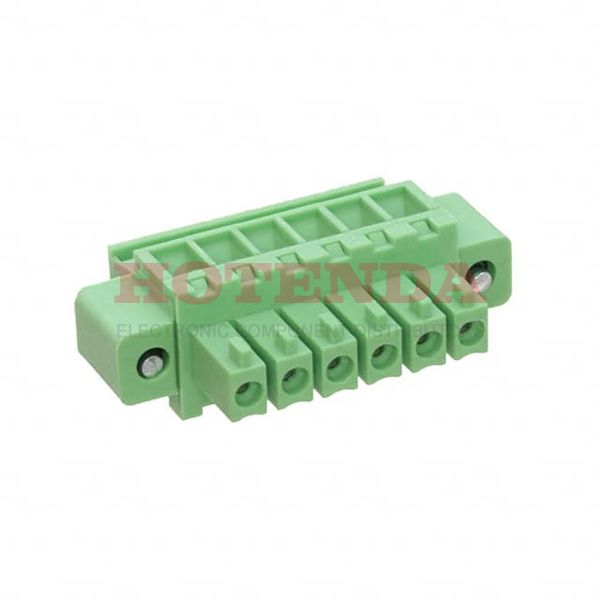

0395078006

0395078006

0395078006

Molex

0395078006 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Molex stock available on our website

SOT-23

0395078006 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 12 Weeks
Contact MaterialPhosphor Bronze
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA66), Nylon 6/6
Operating Temperature-40°C~115°C
PackagingBulk
Series Eurostyle ESE 39507
Feature Mating Flange
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Plug, Female Sockets
Number of Positions 6
Color Green
Pitch 0.138 3.50mm
Insulation Height 0.740 18.80mm
Termination Style Screw - Rising Cage Clamp
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 16-30 AWG
Current - UL 8A
Torque - Screw 0.23 Nm (2.0 Lb-In)
Plug Wire Entry 90°
Wire Strip Length 6.5mm
Screw Size M2
Material Flammability Rating UL94 V-0
RoHS StatusROHS3 Compliant
In-Stock:2308 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$2.34000$2.34
10$1.78500$17.85
25$1.65920$41.48
50$1.49800$74.9
100$1.46300$146.3
250$1.28800$322
500$1.18300$591.5

0395078006 Product Details

0395078006 Overview


Mounting type Free Hanging (In-Line) is selected for the device.Packaging for the product is carried out via a Bulk case.This product is part of the Eurostyle ESE 39507 Series.A number of advantages are provided by its Mating Flange feature.There is no operating temperature for the device.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.

0395078006 Features


Eurostyle ESE 39507 series

0395078006 Applications


There are a lot of Molex 0395078006 Terminal Blocks applications.

  • Energy efficient lighting (LED)
  • Instrumentation
  • Variable speed/frequency drivers
  • Refrigeration control
  • Datacom
  • Control panels
  • All Electrical Machinery
  • Automotive Electronics
  • Medical technology
  • Electrical substations
