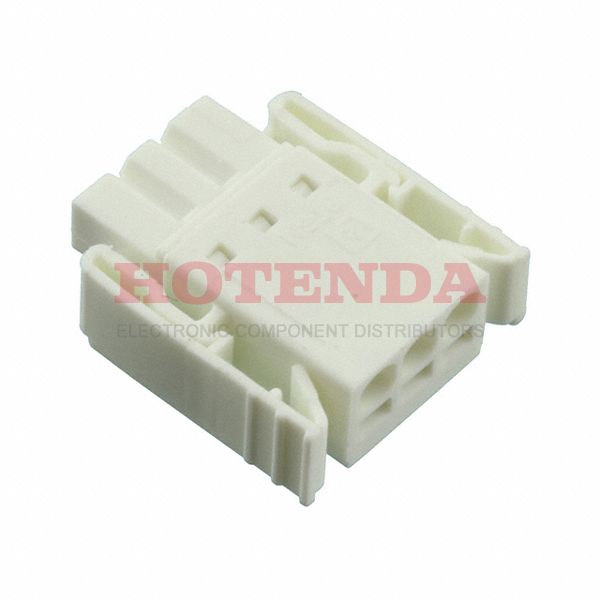

1709459

1709459

1709459

Phoenix Contact

1709459 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1709459 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 7 Weeks
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Plastic
PackagingBulk
Published 2016
Series COMBICON PTSM
Feature Latches
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Termination Screwless
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 3
Color White
Pitch 0.098 2.50mm
Termination Style Screwless - Leg Spring, Push-In Spring
Voltage 150V
Number of Levels 1
Current 5A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 20 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 20-26 AWG
Voltage - IEC 160V
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.14-0.5mm2
Current - IEC 6A
RoHS StatusRoHS Compliant
In-Stock:6226 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.053976$1.053976
10$0.994317$9.94317
100$0.938035$93.8035
500$0.884939$442.4695
1000$0.834848$834.848

1709459 Product Details

1709459 Overview


Free Hanging (In-Line) indicates that the device is mounted.Packaging the product involves using a Bulk case.This is from the COMBICON PTSM Series.Several benefits come from the Latches feature.Free Hanging is the mounting point for the part.With this part, you get a lot of benefits that you won't find in other Plug, Female Sockets products.

1709459 Features


COMBICON PTSM series

1709459 Applications


There are a lot of Phoenix Contact 1709459 Terminal Blocks applications.

  • Blowers
  • All Electrical Machinery
  • Transportation
  • Industrial Automation
  • Military Technology
  • Electrical substations
  • Anywhere power is distributed
  • LED municipal outdoor and street lighting
  • Communication
  • Telecommunications
