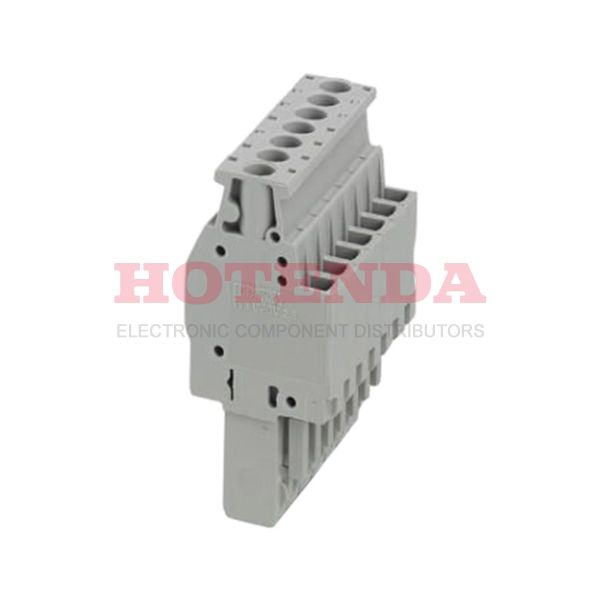

3045457

3045457

3045457

Phoenix Contact

3045457 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

3045457 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 400.000006g
PackagingBulk
Published 2011
Series CLIPLINE COMBI UPBV
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Plug, Female Sockets
Number of Positions 7
Color Gray
Voltage - Rated 500V
Insulation Height 1.850 47.00mm
Reach Compliance Code not_compliant
Current Rating24A
Termination Style Screw
Voltage 600V
Number of Levels 1
Current 20A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 26 AWG
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 500V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Plug Wire Entry 90°
Wire Gauge or Range - mm² 0.14-4mm2
Wire Strip Length 9mm
Current - IEC 24A
Screw Size M3
Length 21mm
Width 36.4mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
In-Stock:830 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$8.38000$8.38
10$8.15300$81.53
50$7.61940$380.97
100$7.00990$700.99
250$6.47652$1619.13
500$6.17176$3085.88

3045457 Product Details

3045457 Overview


There is a mounting type of Free Hanging (In-Line) for this device.In order to package the product, a Bulk case is used.A product of the CLIPLINE COMBI UPBV Series, it belongs to the range of products of that series.It's mounted by Free Hanging.Other Plug, Female Sockets products share lots of benefits with this part.

3045457 Features


CLIPLINE COMBI UPBV series

3045457 Applications


There are a lot of Phoenix Contact 3045457 Terminal Blocks applications.

  • Anywhere power is distributed
  • Energy efficient lighting (LED)
  • Automotive Electronics
  • Data Technology
  • Transportation
  • LED municipal outdoor and street lighting
  • Military Technology
  • Measuring & Control Technology
  • Refrigeration control
  • Medical technology
