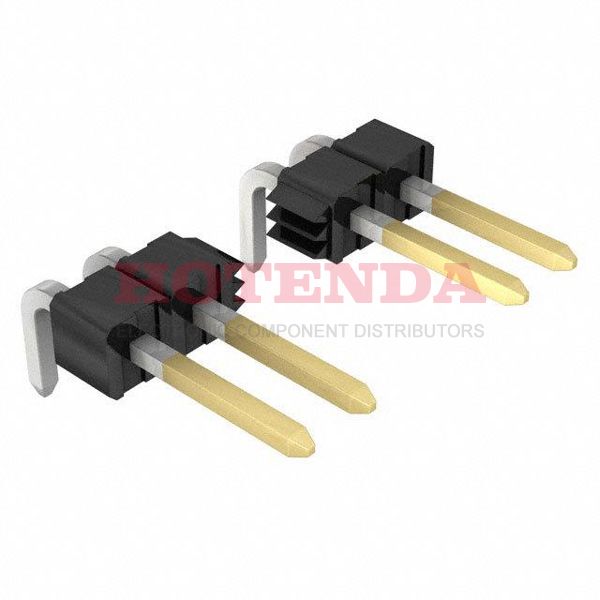

Name: 0022288093
Brand: Molex
SKU: 0022288093
Price: 0.69000 USD
Availability: InStock

new-10%

0022288093

Manufacturer part number:0022288093

Manufacturer:Molex

Description:0022288093 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0022288093 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	NOT SPECIFIED
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Packaging	Bulk
Series	KK 42377
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header, Breakaway
Number of Positions	9
Applications	Automotive, General Purpose, Medical, Telecommunications
Number of Rows	1
Gender	Male
Fastening Type	Push-Pull
Voltage - Rated DC	250V
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Insulation Height	0.098 2.50mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Current Rating	4A
Pitch - Mating	0.100 2.54mm
Contact Length - Post	0.120 3.05mm
Shrouding	Unshrouded
Lead Pitch	2.54mm
Contact Finish - Post	Tin
Contact Length - Mating	0.324 8.23mm
Housing Color	Black
Contact Finish Thickness - Mating	15.0μin 0.38μm
Contact Finish Thickness - Post	100.0μin 2.54μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

0022288093 Product Details

0022288093 Overview

Packaging is in the form of Header, Breakaway.Mounting type Through Hole, Right Angle is selected for the device.It has been determined that a Bulk case is necessary to package the product.The product is a part of the KK 42377 Series.It is possible for the device to be used for the application Automotive, General Purpose, Medical, Telecommunications.You've got Through Hole mounted on the part.
