Name: 5-102617-1
Brand: TE Connectivity AMP Connectors
SKU: 5-102617-1
Price: 2.97000 USD
Availability: InStock

new-10%

5-102617-1

Manufacturer part number:5-102617-1

Manufacturer:TE Connectivity AMP Connectors

Description:5-102617-1 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:5-102617-1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	18 Weeks
Lifecycle Status	ACTIVE (Last Updated: 1 week ago)
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Thermoplastic
PCB Mounting Orientation	Right Angle
Operating Temperature	-65°C~105°C
Packaging	Tray
Published	2007
Series	AMPMODU Mod II
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	6
Number of Rows	2
Gender	Male
Fastening Type	Detent Lock
Voltage - Rated DC	250V
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Orientation	Right Angle
Depth	16.23mm
Insulation Height	0.400 10.16mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Current Rating	3A
Pitch - Mating	0.100 2.54mm
Number of Conductors	ONE
Voltage - Rated AC	250V
Reliability	COMMERCIAL
Approval Agency	CSA
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.135 3.43mm
Shrouding	Shrouded - 4 Wall
Number Of PCB Rows	2
Lead Pitch	2.54mm
Contact Finish - Post	Tin
Contact Length - Mating	0.318 8.08mm
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.413 inch
Housing Color	Black
Lead Length	3.429mm
Rated Current (Signal)	3A
Insulation Resistance	5GOhm
Mating Contact Pitch	0.1 inch
ELV	Compliant
Polarization Key	CTR W/GUIDE SLOTS
Dielectric Withstanding Voltage	1050VAC V
Contact Current Rating	3A
Mating Post Length	8.08mm
High Temperature Housing	No
Shrouded End Dimension	1.68 mm
Length	10.46mm
Plating Thickness	15μin
Contact Finish Thickness - Mating	15.0μin 0.38μm
Contact Finish Thickness - Post	100.0μin 2.54μm
PCB Thickness	1.397mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

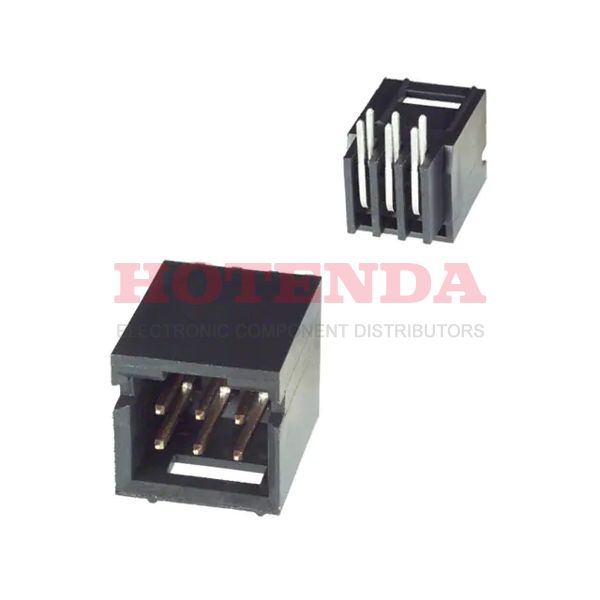

5-102617-1 Product Details

5-102617-1 Overview

This product is packaged in a Header cartonThis device's mounting type is Through Hole, Right Angle.We use a Tray case to package the product.The product is a member of the AMPMODU Mod II Series.The part is mounted by Through Hole.Operating temperature is set to -65°C~105°C.
