Name: 2029030-3
Brand: TE Connectivity AMP Connectors
SKU: 2029030-3
Price: 1.00000 USD
Availability: InStock

new-10%

2029030-3

Manufacturer part number:2029030-3

Manufacturer:TE Connectivity AMP Connectors

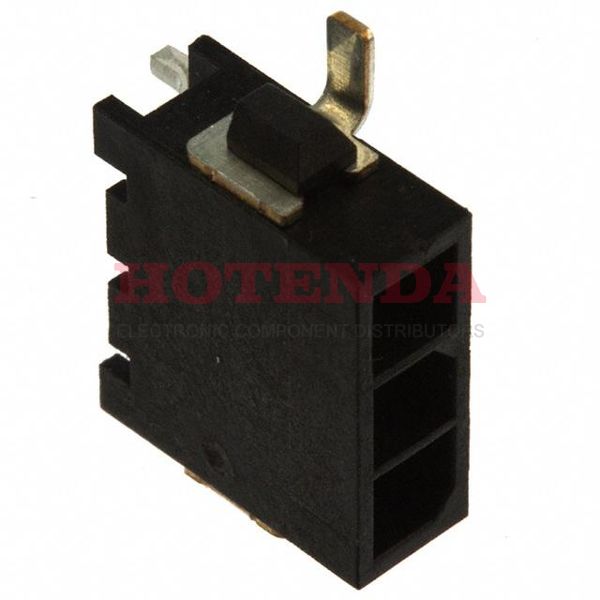

Description:Micro MATE-N-LOK Series 1-Row Header Solder Brass Cut Tape (CT) Surface Mount, Right Angle Tin Polyamide (PA), Nylon 3-Position Board to Cable/Wire 0.152 3.85mm Height

Case Package:SOT-23

Datasheet:2029030-3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 5 days ago)
Factory Lead Time	18 Weeks
Contact Material	Brass
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Contact Shape	Square
Insulation Material	Polyamide (PA), Nylon
Material	Nylon
PCB Mounting Orientation	Right Angle
Operating Temperature	-40°C~105°C
Packaging	Cut Tape (CT)
Series	Micro MATE-N-LOK
Published	2008
Feature	Solder Retention
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	3
Applications	General Purpose
Number of Rows	1
Additional Feature	LOW PROFILE
Fastening Type	Locking Ramp
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Current Rating (Amps)	Varies by WireGAuge
Total Number of Contacts	3
Orientation	Right Angle
Terminal Pitch	2.9972mm
Depth	11.16mm
Insulation Height	0.152 3.85mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Current Rating	5A
Pitch - Mating	0.118 3.00mm
Number of Conductors	ONE
Voltage - Rated AC	250V
Reliability	COMMERCIAL
Approval Agency	CSA
Shrouding	Shrouded - 4 Wall
Number Of PCB Rows	1
PCB Contact Pattern	RECTANGULAR
Contact Gender	Male
Housing Color	Black
Empty Shell	NO
Operating Supply Voltage	250V
ELV	Compliant
Max Voltage Rating (AC)	250V
Polarization Key	POLARIZED HOUSING
Sealable	No
Contact Current Rating	5A
Circuit Application	Power
Number of Power Positions	3
Number of Signal Positions	0
Contact Retention	Without
VDE Tested	Yes
Length	13mm
Plating Thickness	2.54μm
Contact Finish Thickness - Mating	100.0μin 2.54μm
Contact Finish Thickness - Post	100.0μin 2.54μm
PCB Thickness	62μm
Material Flammability Rating	UL94 V-0
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

2029030-3 Product Details

2029030-3 Overview

You get it in Header packaging.Mounting type Surface Mount, Right Angle is selected for the device.Packaged in a Cut Tape (CT) case.A member of the Micro MATE-N-LOK Series.Besides that, there's also LOW PROFILE, to name a few.Here's a possible application for the device: General Purpose.This feature renders it more powerful in a number of ways because of its Solder Retention feature.There's a Surface Mount mount on the part.It operates at a voltage of 250V.Device runs in -40°C~105°C operating temperature.
