12065A390JAT2A

  • 12065A390JAT2A
  • 12065A390JAT2A

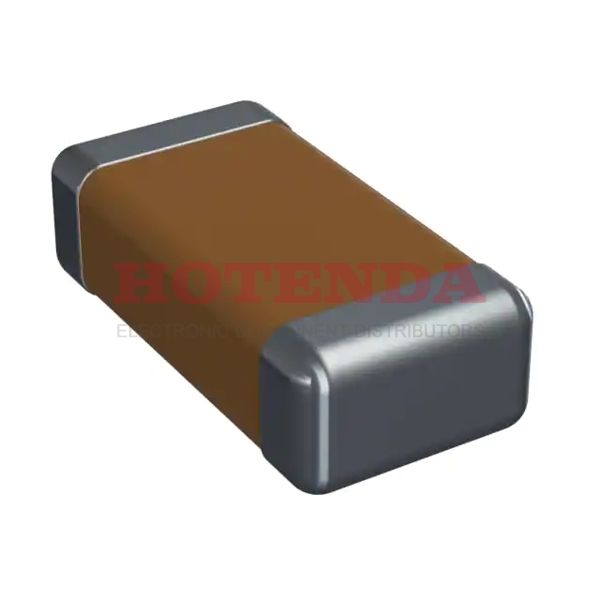

12065A390JAT2A

12065A390JAT2A

AVX Corporation

12065A390JAT2A datasheet pdf and Ceramic Capacitors product details from AVX Corporation stock available on our website

SOT-23

12065A390JAT2A Datasheet

non-compliant

In-Stock: 0 items
Specifications
Name Value
Type Parameter
Factory Lead Time 12 Weeks
Mount Surface Mount
Mounting Type Surface Mount, MLCC
Package / Case 1206 (3216 Metric)
Terminal Shape WRAPAROUND
Number of Pins 2
Material Ceramic
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2004
Size / Dimension 0.126Lx0.063W 3.20mmx1.60mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Temperature Coefficient C0G NP0
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Applications General Purpose
Capacitance 39pF
Voltage - Rated DC 50V
Packing Method TR, PAPER, 7 INCH
Depth 1.6mm
Case Code (Metric) 3216
Case Code (Imperial) 1206
Dielectric C0G
Temperature Characteristics Code C0G
Multilayer Yes
Height 950μm
Thickness (Max) 0.037 0.94mm
Thickness 939.8μm
Radiation Hardening No
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Pricing & Ordering
Quantity Unit Price Ext. Price
1 $0.552980 $0.55298
10 $0.521679 $5.21679
100 $0.492150 $49.215
500 $0.464293 $232.1465
1000 $0.438012 $438.012
12065A390JAT2A Product Details

12065A390JAT2A Overview


In the case of this device, the size/dimension of the program is 0.126Lx0.063W 3.20mmx1.60mm.In general, the temperature coefficient of resistance is defined as the change in electrical resistance of a substance per degree of temperature change.Ceramic capacitor runs on voltage of 50V - Rated DC.

12065A390JAT2A Features


a size/dimension of 0.126Lx0.063W 3.20mmx1.60mm
with C0G NP0 being the highest temperature coefficient
with the voltage - Rated DC of 50V

12065A390JAT2A Applications


There are a lot of AVX Corporation 12065A390JAT2A applications of ceramic capacitors.

  • Mobile devices
  • Power supply circuit
  • General electronic equipment
  • Servers, PCs, tablets
