CC0603JRX7R9BB471

  • CC0603JRX7R9BB471
  • CC0603JRX7R9BB471

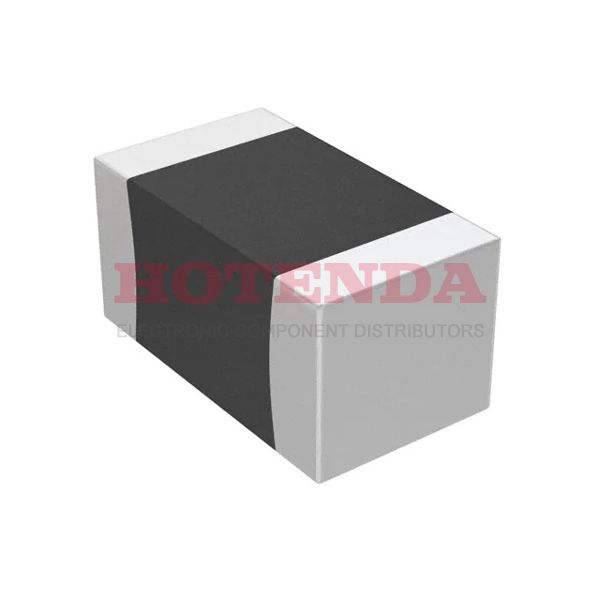

CC0603JRX7R9BB471

CC0603JRX7R9BB471

Yageo

CC0603JRX7R9BB471 datasheet pdf and Ceramic Capacitors product details from Yageo stock available on our website

SOT-23

CC0603JRX7R9BB471 Datasheet

non-compliant

In-Stock: 0 items
Specifications
Name Value
Type Parameter
Factory Lead Time 33 Weeks
Mount Surface Mount
Mounting Type Surface Mount, MLCC
Package / Case 0603 (1608 Metric)
Terminal Shape WRAPAROUND
Dielectric Material CERAMIC
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2010
Series CC
Size / Dimension 0.063Lx0.031W 1.60mmx0.80mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Temperature Coefficient X7R
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Applications General Purpose
HTS Code 8532.24.00.20
Capacitance 470pF
Voltage - Rated DC 50V
Packing Method TR, PAPER, 7 INCH
Depth 800μm
Case Code (Metric) 1608
Case Code (Imperial) 0603
Capacitor Type CERAMIC CAPACITOR
Temperature Characteristics Code X7R
Multilayer Yes
Insulation Resistance 10GOhm
Dissipation Factor 2.5 %
Halogen Free Halogen Free
Height 0.8mm
Length 1.6mm
Width 0.8mm
Thickness (Max) 0.035 0.90mm
Thickness 889μm
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Pricing & Ordering
Quantity Unit Price Ext. Price
1 $0.180420 $0.18042
10 $0.170208 $1.70208
100 $0.160573 $16.0573
500 $0.151484 $75.742
1000 $0.142910 $142.91
CC0603JRX7R9BB471 Product Details

CC0603JRX7R9BB471 Overview


Ceramic capacitor is 0.063Lx0.031W 1.60mmx0.80mm in size/dimension for this device.Temperature coefficient of resistance refers to the change in electrical resistance of a substance per degree change in temperature, with X7R being the highest temperature coefficient.Ceramic capacitor runs on voltage of 50V - Rated DC.The insulation resistance of this capacitor is 10GOhm (10GOhm), which refers to the resistance of an alternating current between two electrical conductors or systems of conductors separated by an insulating material.

CC0603JRX7R9BB471 Features


a size/dimension of 0.063Lx0.031W 1.60mmx0.80mm
with X7R being the highest temperature coefficient
with the voltage - Rated DC of 50V

CC0603JRX7R9BB471 Applications


There are a lot of Yageo CC0603JRX7R9BB471 applications of ceramic capacitors.

  • General electronic equipment
  • Mobile devices
  • Power supply circuit
  • Servers, PCs, tablets
