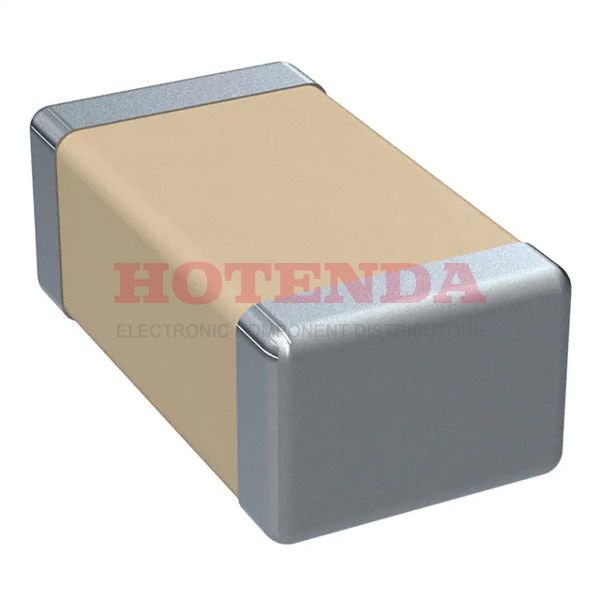

Name: C0805C183K8JAC7210
Brand: KEMET Corporation
SKU: C0805C183K8JAC7210
Price: 0.07000 USD
Availability: InStock

new-10%

C0805C183K8JAC7210

Manufacturer part number:C0805C183K8JAC7210

Manufacturer:KEMET Corporation

Description:SMD Comm U2J 18000PF(pF) 10V Ceramic Capacitor 10% 30 ppm/°C 0.079 L x 0.049 W (2.00mm x 1.25mm) -55°C ~ 125°C Surface Mount, MLCC 0805

Case Package:SOT-23

Datasheet:C0805C183K8JAC7210 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Package / Case	0805
Mounting Type	Surface Mount, MLCC
Surface Mount	YES
Terminal Shape	WRAPAROUND
Mounting Feature	SURFACE MOUNT
Material	Ceramic
Dielectric Material	CERAMIC
Number of Terminals	2
Mounting Style	Surface Mount
ECCN (US)	EAR99
Capacitance Value	0.018uF
Equivalent Series Resistance Type	Extreme Low
Microwave Application	No
Mounting	Surface Mount
Case Style	Ceramic Chip
Dissipation Factor (%)	0.1
Size (mm)	2 X 1.25 X 0.78
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	125
Product Depth (mm)	1.25
Wire Form	Not Required
Operating Temp Range	-55C to 125C
Product Diameter (mm)	Not Required(mm)
Temp Coeff (Dielectric)	U2J
Lead Diameter (nom)	Not Required(mm)
Tolerance (+ or -)	10%
Rad Hardened	No
Seated Plane Height	Not Required(mm)
Schedule B	8532240020, 8532240020/8532240020/8532240020/8532240020/8532240020
RoHS	Non-Compliant
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Manufacturer	KEMET
Brand	KEMET
Class	Class 1
Package	Tape & Reel (TR)
Base Product Number	C0805C
Mfr	KEMET
Product Status	Active
Height - Seated (Max)	-
Packaging	Tape and Reel
Series	SMD Comm U2J
Operating Temperature	-55°C ~ 125°C
Size / Dimension	0.079 L x 0.049 W (2.00mm x 1.25mm)
Tolerance	10%
JESD-609 Code	e3
Pbfree Code	Yes
Part Status	Active
Termination	Standard
Temperature Coefficient	30 ppm/°C
Type	U2J Dielectric Commercial and Automotive Grade MLCCs
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Max Operating Temperature	125 °C
Min Operating Temperature	-55 °C
Applications	General Purpose
Voltage - Rated	10V
Capacitance	18000PF(pF)
Subcategory	Capacitors
Packing Method	TR, PUNCHED PAPER, 13 INCH
Construction	Flat
Reach Compliance Code	compliant
Termination Style	Pad
Capacitor Type	CERAMIC CAPACITOR
Dielectric	U2J
Failure Rate	Not Required
Lead Spacing	-
Temperature Characteristics Code	U2J
Multilayer	Yes
Rated (DC) Voltage (URdc)	10 V
Size Code	0805
Voltage	10VDC
Lead Style	-
Positive Tolerance	10%
Negative Tolerance	10%
Product Type	Ceramic Capacitors
Product	General Type MLCCs
Features	Low ESL, Low Dissipation Factor
Voltage Rating	10 V
Product Category	Multilayer Ceramic Capacitors MLCC - SMD/SMT
Product Length (mm)	2
Height	880 µm
Width	1.25 mm
Length	2 mm
Thickness (Max)	0.035 (0.88mm)
Product Height (mm)	0.78
RoHS Status	RoHS Compliant
Ratings	-

C0805C183K8JAC7210 Product Details

C0805C183K8JAC7210 Overview

Programs on this device are of 0.079 L x 0.049 W (2.00mm x 1.25mm) size/dimension.There is 10% tolerance on this part, speaking of negative tolerances.Generally, capacitance is the ratio between a conductor's electric charge and the potential difference (or voltage) between them. This device has 0.018uF capacitance value.Temperatures greater than -55 °C are recommended for stable operation.Positive tolerance is present at 10% for this part.Temperature coefficient of resistance refers to the change in electrical resistance of a substance per degree change in temperature, with 30 ppm/°C being the highest temperature coefficient.

C0805C183K8JAC7210 Features

a size/dimension of 0.079 L x 0.049 W (2.00mm x 1.25mm)
a tolerance of 10%
a capacitance value of 0.018uF
a tolerance of 10%
with 30 ppm/°C being the highest temperature coefficient
