Name: CC0402JRNPO9BN121
Brand: Yageo
SKU: CC0402JRNPO9BN121
Price: 0.10000 USD
Availability: InStock

new-10%

CC0402JRNPO9BN121

Manufacturer part number:CC0402JRNPO9BN121

Manufacturer:Yageo

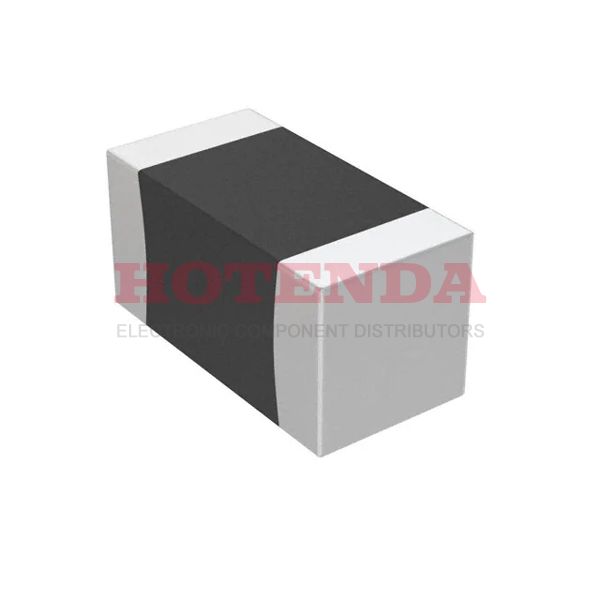

Description:CC 120pF Ceramic Capacitor ±5% C0G NP0 0.039Lx0.020W 1.00mmx0.50mm -55°C~125°C 2 Terminations Surface Mount, MLCC 0402 (1005 Metric)

Case Package:SOT-23

Datasheet:CC0402JRNPO9BN121 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	33 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount, MLCC
Package / Case	0402 (1005 Metric)
Terminal Shape	WRAPAROUND
Number of Pins	2
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	CC
Published	2010
Size / Dimension	0.039Lx0.020W 1.00mmx0.50mm
Tolerance	±5%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	SMD/SMT
Temperature Coefficient	C0G NP0
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Applications	General Purpose
Capacitance	120pF
Voltage - Rated DC	50V
Packing Method	TR, PAPER, 7 INCH
Depth	500μm
Case Code (Metric)	1005
Case Code (Imperial)	0402
Capacitor Type	CERAMIC CAPACITOR
Dielectric	C0G
Temperature Characteristics Code	C0G
Multilayer	Yes
Halogen Free	Halogen Free
Height	500μm
Length	1mm
Width	0.5mm
Thickness (Max)	0.022 0.55mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

CC0402JRNPO9BN121 Product Details

CC0402JRNPO9BN121 Overview

Consequently, the program has size/dimension 0.039Lx0.020W 1.00mmx0.50mm.This coefficient is determined by the change in electrical resistance of a substance as a function of temperature; in general, its coefficient is C0G NP0.Powered by voltage of 50V, it can be operated with a voltage of rated DC.
