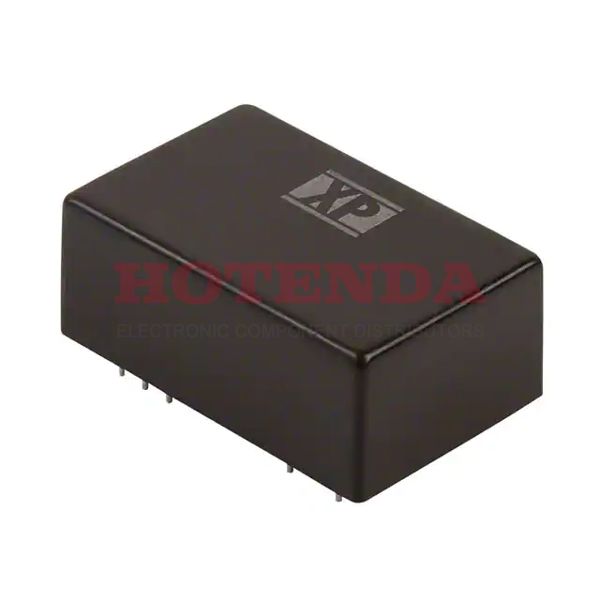

XP POWER - LDU4860S1000 - LED DRIVER, DC-DC, CC, 1A, 48V
SOT-23
LDU4860S1000 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
10 Weeks
Mount
Through Hole
Mounting Type
Through Hole
Package / Case
23-DIP Module, 9 Leads
Weight
0.039lb 17.69g
Operating Temperature
-40°C~55°C
Packaging
Tube
Published
2011
Series
LDU48
Size / Dimension
1.25Lx0.80W x 0.49 H 31.8mmx20.3mmx12.5mm
Feature
Remote On/Off, SCP
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Type
Constant Current
Max Power Dissipation
48W
Number of Outputs
1
Approval Agency
EN
Efficiency
97%
Voltage - Input (Max)
60V
Max Output Current
1A
Voltage - Input (Min)
7V
Output Current
1A
Output Power
48W
Max Output Voltage
48V
Voltage - Output
2V~48V
Topology
Buck
Max Output Power
48W
Dimming
Analog, PWM
Height
12.446mm
REACH SVHC
Unknown
RoHS Status
ROHS3 Compliant
In-Stock:338 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$20.50000
$20.5
5
$19.88600
$99.43
10
$19.27000
$192.7
25
$18.45000
$461.25
100
$17.32900
$1732.9
LDU4860S1000 Product Details
Description: The XP Power LDU4860S1000 is a Constant Current (CC) LED Driver with a maximum output current of 1A and an input voltage range of 4.5V to 48V. It is designed to provide a reliable and efficient power source for LED lighting applications.
Features: • Maximum output current of 1A • Input voltage range of 4.5V to 48V • Constant current output • High efficiency • Low ripple and noise • Over-temperature protection • Short-circuit protection • Over-voltage protection • RoHS compliant
Applications: The XP Power LDU4860S1000 LED Driver is suitable for a wide range of LED lighting applications, including automotive, industrial, and commercial lighting. It can be used to power LED strips, LED panels, LED spotlights, and other LED lighting fixtures.
