Name: 9994170000
Brand: Weidmüller
SKU: 9994170000
Price: 3.31000 USD
Availability: InStock

new-10%

9994170000

Manufacturer part number:9994170000

Manufacturer:Weidmüller

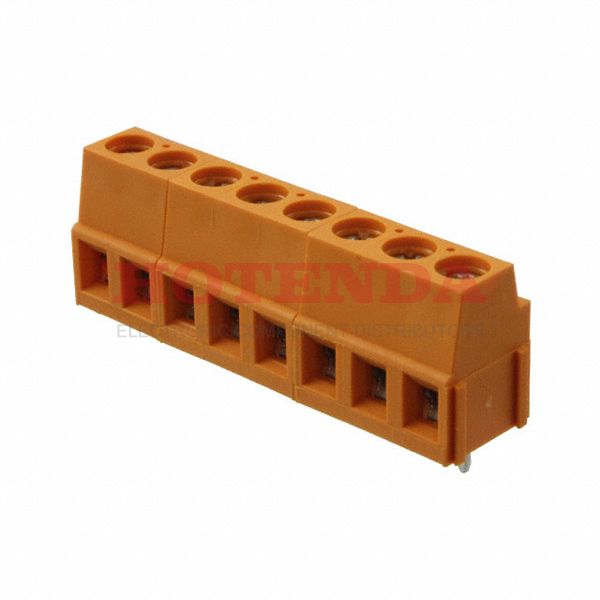

Description:0.200 5.08mm Orange Bulk Thermoplastic, Wemid Through Hole Horizontal with Board Screw - Clamping Yoke, Tension Sleeve 1 Levels 14-24 AWG Omnimate LM

Case Package:SOT-23

Datasheet:9994170000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Thermoplastic, Wemid
Contact Material - Plating	Copper Alloy - Tin Plated
Operating Temperature	-50°C~120°C
Packaging	Bulk
Series	Omnimate LM
Published	2004
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Color	Orange
Number of Rows	1
Voltage - Rated	300V
Additional Feature	POLYAMIDE, 94V-2
Pitch	0.200 5.08mm
Orientation	Straight
Current Rating	10A
Approval Agency	CSA, cURus
Number of Contacts	8
Wire Gauge	14-24 AWG
Number of Levels	1
Current	15A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Terminal and Terminal Block Type	STRIP TERMINAL BLOCK
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Number of Ways	8
Safety Approval	UL; VDE; CSA
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Clamping Yoke, Tension Sleeve
Screw Thread	M2.5
Hole Diameter	1.3 mm
Stripping Length	6mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

9994170000 Product Details

9994170000 Overview

Mounting type is Through Hole.To package the product, we use a Bulk case.This product is from the Omnimate LM Series.Then there's POLYAMIDE, 94V-2, for example.A number of advantages are provided by its Interlocking (Side) feature.Mounted by Through Hole.Device runs at -50°C~120°C Operating Temperature.
