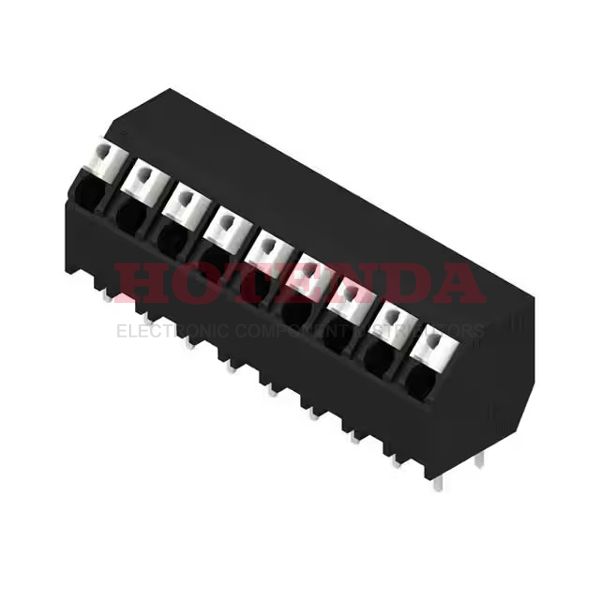

Name: 1885090000
Brand: Weidmüller
SKU: 1885090000
Price: 3.14000 USD
Availability: InStock

new-10%

1885090000

Manufacturer part number:1885090000

Manufacturer:Weidmüller

Description:0.200 5.08mm Black Tube Liquid Crystal Polymer (LCP), Glass Filled Through Hole 45° (135°) Angle with Board Screwless - Push Button Clamp 1 Levels 16-24 AWG Omnimate LSF-SMT

Case Package:SOT-23

Datasheet:1885090000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Weight	10.417g
Contact Material - Plating	Copper Alloy - Tin Plated
Operating Temperature	-50°C~240°C
Packaging	Tube
Series	Omnimate LSF-SMT
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
Color	Black
Number of Rows	1
Voltage - Rated	300V
Pitch	0.200 5.08mm
Current Rating	10A
Approval Agency	CSA, cURus
Number of Contacts	9
Wire Gauge	16-24 AWG
Number of Levels	1
Current	12A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	16 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Number of Ways	9
Safety Approval	UL; CSA
Mating Orientation	45° (135°) Angle with Board
Wire Termination	Screwless - Push Button Clamp
Hole Diameter	1.1 mm
Stripping Length	8mm
Fastening Method	PUSH-ON
Height	255mm
Length	10mm
Width	20mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1885090000 Product Details

1885090000 Overview

Through Hole indicates that the device is mounted.An Tube case is utilized for packaging the product.The product is a part of the Omnimate LSF-SMT Series.By Through Hole, the part is mounted.Operating temperature is set to -50°C~240°C.
