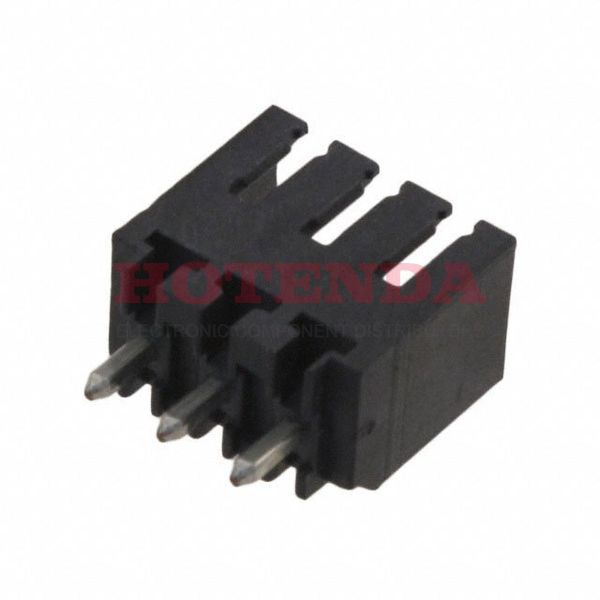

Name: 1842330000
Brand: Weidmüller
SKU: 1842330000
Price: 1.93000 USD
Availability: InStock

new-10%

1842330000

Manufacturer part number:1842330000

Manufacturer:Weidmüller

Description:1842330000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1842330000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2008
Series	Omnimate SL
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Type	Header, Male Pins, Shrouded (4 Side)
Color	Black
Number of Rows	1
Gender	Male
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Total Number of Contacts	3
Ingress Protection	IP10
Depth	7.5mm
Insulation Height	0.435 11.05mm
Current Rating	13A
Termination Style	Solder
Approval Agency	CSA, UR
UL Flammability Code	94V-0
Voltage	300V
Contact Tail Length	0.126 3.20mm
Max Current Rating	10A
Number of Levels	1
Current	10A
Number of Poles	3
Contact Mating Finish	Tin
Voltage - IEC	320V
Header Orientation	Vertical
Current - IEC	15A
Hole Diameter	1.4 mm
Length	11.9mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1842330000 Product Details

1842330000 Overview

Its mounting type is Through Hole.A Bulk case is used to package the product.Product number Omnimate SL belongs to the Omnimate SL Series.There's a Through Hole on the part.It operates at an operating temperature of -50°C~100°C.There are a lot of advantages this part has in common with other Header, Male Pins, Shrouded (4 Side) parts.
