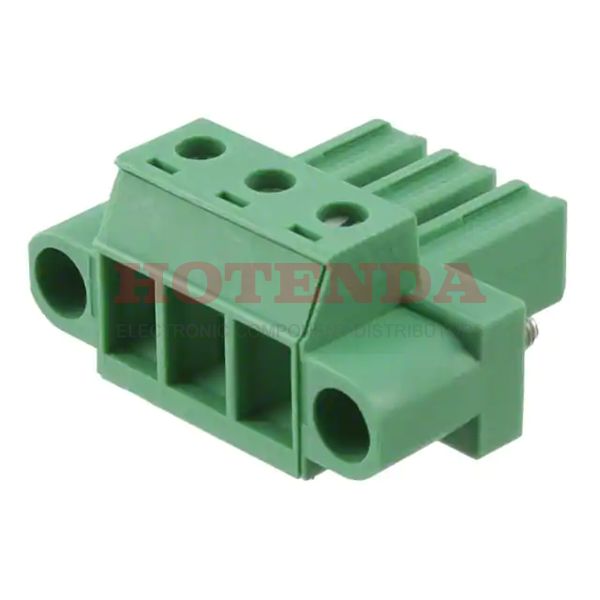

Name: 1828252
Brand: Phoenix Contact
SKU: 1828252
Price: 8.61000 USD
Availability: InStock

new-10%

1828252

Manufacturer part number:1828252

Manufacturer:Phoenix Contact

Description:1828252 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1828252 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper
Mount	Free Hanging, Panel, Plug-In
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	1.200205kg
Packaging	Bulk
Published	2010
Series	COMBICON PC
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	400V
Additional Feature	PA, 94V-0
Pitch	0.300 7.62mm
Orientation	Right Angle
Depth	30.7mm
Insulation Height	0.713 18.10mm
Current Rating	20A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	3
Voltage	600V
Max Supply Voltage	400V
Max Current Rating	20A
Number of Levels	1
Current	5A
Wire Gauge (Max)	10 AWG
Wire Gauge (Min)	24 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	10-30 AWG
Voltage - IEC	1kV
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	3
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-4mm2
Screw Size	M3
Stripping Length	7mm
Wire Cross Section	4 mm2
Height	18.1mm
Length	30.08mm
Width	38.08mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1828252 Product Details

1828252 Overview

Packaging for this item is Screw, Socket.Free Hanging (In-Line) is the mount type.It is necessary to use a Bulk case for packaging the product.The product is a member of the COMBICON PC Series.Further, there are features such as PA, 94V-0, to name only a few.In many ways, its Mating Flange feature makes it more powerful.By Free Hanging, Panel, Plug-In, the part is mounted.This chip should not be operated above 400V volts.Several of the benefits of this part are also shared by other Plug, Female Sockets products.
