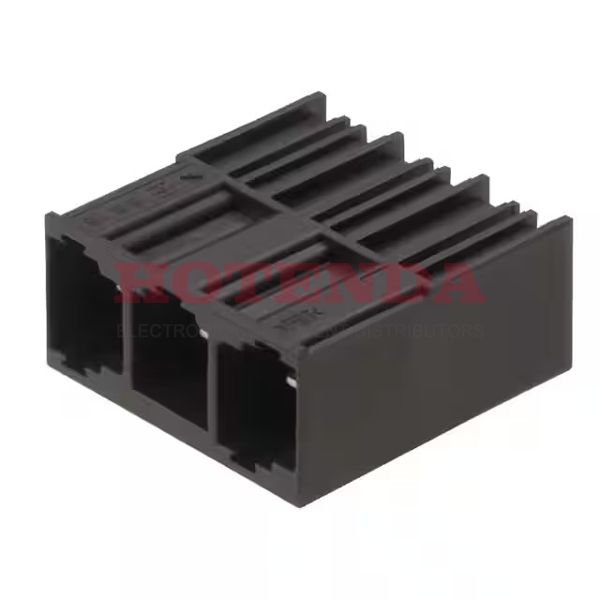

Name: 1813330000
Brand: Weidmüller
SKU: 1813330000
Price: 2.73000 USD
Availability: InStock

new-10%

1813330000

Manufacturer part number:1813330000

Manufacturer:Weidmüller

Description:1813330000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1813330000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature	-50°C~120°C
Packaging	Bulk
Published	2008
Series	Omnimate SU
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Through Hole
Type	Header, Blade Pins, Shrouded (4 Side)
Color	Black
Gender	Male
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Option	GENERAL PURPOSE
Pitch	0.400 10.16mm
Ingress Protection	IP20
Insulation Height	0.535 13.60mm
Current Rating	54A
Termination Style	Solder
Approval Agency	cURus
Contact Tail Length	0.138 3.50mm
Number of Levels	1
Number of Poles	2
Contact Mating Finish	Silver
Current - UL	60A
Voltage - IEC	1kV
Header Orientation	90°, Right Angle
Current - IEC	78.3A
Hole Diameter	1.6 mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1813330000 Product Details

1813330000 Overview

Through Hole is the mounting type.Packaging the product involves using a Bulk case.Omnimate SU Series product.Through Hole represents the mounting point for the part.Device runs in -50°C~120°C operating temperature.There are many benefits that this part shares with other Header, Blade Pins, Shrouded (4 Side) products as well.
