Name: 1811530000
Brand: Weidmüller
SKU: 1811530000
Price: 1.16000 USD
Availability: InStock

new-10%

1811530000

Manufacturer part number:1811530000

Manufacturer:Weidmüller

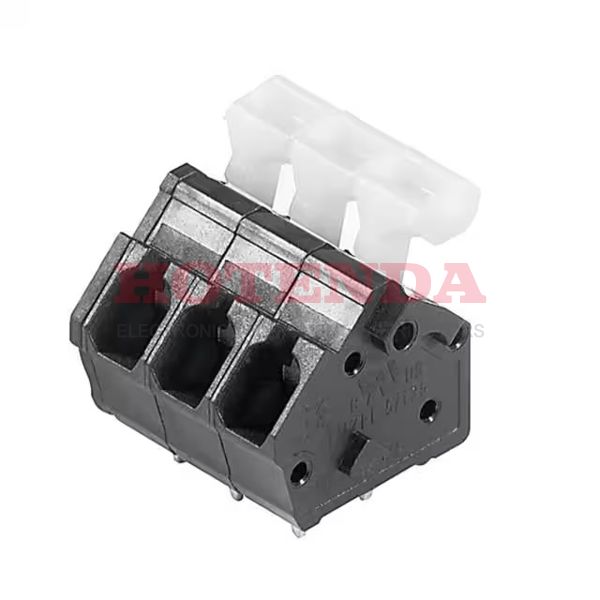

Description:0.197 5.00mm Black Bulk Thermoplastic, Wemid Through Hole 45° (135°) Angle with Board Screwless - Spring Cage, Tension Clamp 1 Levels 14-26 AWG Omnimate LMZFL

Case Package:SOT-23

Datasheet:1811530000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Thermoplastic, Wemid
Contact Material - Plating	Copper Alloy - Tin Plated
Operating Temperature	-50°C~120°C
Packaging	Bulk
Series	Omnimate LMZFL
Published	2008
Feature	Interlocking (Side), Lever Actuated
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Color	Black
Number of Rows	1
Voltage - Rated	300V
Pitch	0.197 5.00mm
Current Rating	10A
Approval Agency	CSA, cURus
Number of Contacts	4
Wire Gauge	14-26 AWG
Number of Levels	1
Current	15A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	14 AWG
Wire/Cable Gauge	26 AWG
Number of Decks	1
Terminal and Terminal Block Type	STRIP TERMINAL BLOCK
Number of Ways	4
Safety Approval	UL; CSA
Mating Orientation	45° (135°) Angle with Board
Wire Termination	Screwless - Spring Cage, Tension Clamp
Hole Diameter	1.3 mm
Stripping Length	6mm
Wire Cross Section	2.5 mm2
Fastening Method	SPRING LOADED
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1811530000 Product Details

1811530000 Overview

This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Omnimate LMZFL Series.Several benefits come from the Interlocking (Side), Lever Actuated feature.There is a mounting hole at Through Hole.Devices operate at -50°C~120°C operating temperatures.
