Name: 1798740000
Brand: Weidmüller
SKU: 1798740000
Price: 9.07000 USD
Availability: InStock

new

1798740000

Manufacturer part number:1798740000

Manufacturer:Weidmüller

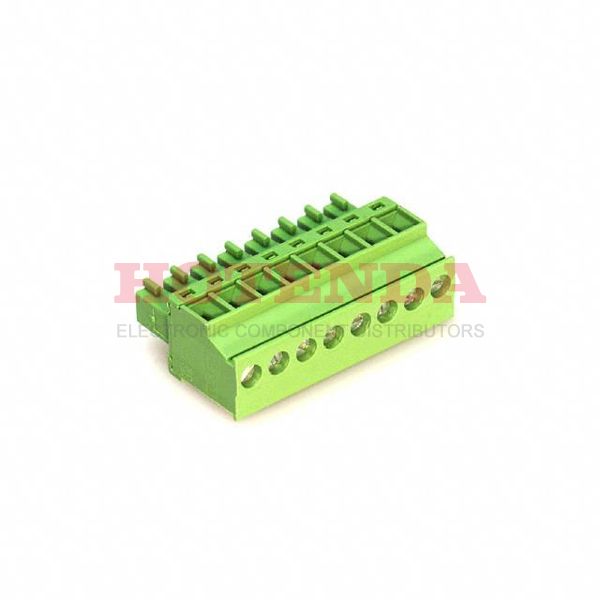

Description:Bulk 0.150 3.81mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets Omnimate BC Polyamide (PA), Nylon, Glass Filled Tin Copper Alloy

Case Package:SOT-23

Datasheet:1798740000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon, Glass Filled
Operating Temperature	-50°C~120°C
Packaging	Bulk
Series	Omnimate BC
Published	2003
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Male
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.150 3.81mm
Orientation	Right Angle
Ingress Protection	IP20
Insulation Height	0.411 10.44mm
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Number of Contacts	8
UL Flammability Code	94V-0
Insulation Resistance	5MOhm
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	16 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	16-28 AWG
Voltage - IEC	320V
Torque - Screw	0.2-0.25 Nm (1.7-2.2 Lb-In)
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	7mm
Current - IEC	17.5A
Screw Size	M2
Height	19.1mm
Width	10.4mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1798740000 Product Details

1798740000 Overview

Free Hanging (In-Line) is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Omnimate BC Series, it can be found in this category.In this case, Cable, Free Hanging mounts the part.The device is operating at -50°C~120°C Operating Temperature.There are a lot of similarities between this part and other Plug, Female Sockets products.
