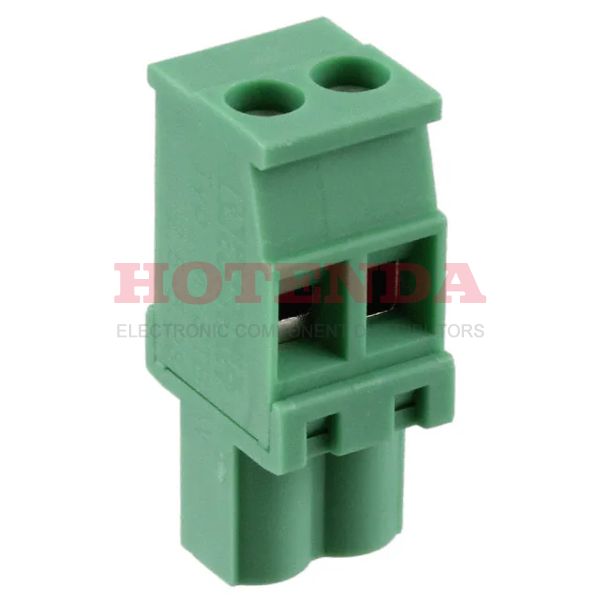

Name: 1912841
Brand: Phoenix Contact
SKU: 1912841
Price: 2.71000 USD
Availability: InStock

new-10%

1912841

Manufacturer part number:1912841

Manufacturer:Phoenix Contact

Description:1912841 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1912841 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	4.240011g
Packaging	Bulk
Published	2001
Series	COMBICON MVSTBW
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	300V
Additional Feature	PA, UL 94V0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Straight
Insulation Height	1.024 26.01mm
Current Rating	10A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	2
Voltage	300V
Max Current Rating	16A
Number of Levels	1
Current	16A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	30 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	2
Safety Approval	UL
Plug Wire Entry	270°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Height	26mm
Length	10.16mm
Width	12.6mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1912841 Product Details

1912841 Overview

Packaging is Socket.This device's mounting type is Free Hanging (In-Line).It's packaged in a Bulk case.There is a product in the COMBICON MVSTBW Series.In addition, there are other features such as PA, UL 94V0, to mention only a few.Its Retention Latches (Non-Wire Side) feature renders it more powerful in many ways.Part Cable, Free Hanging is mounted to the part.Several of the benefits of this part are also shared by other Plug, Female Sockets products.
