1798130000

1798130000

1798130000

Weidmüller

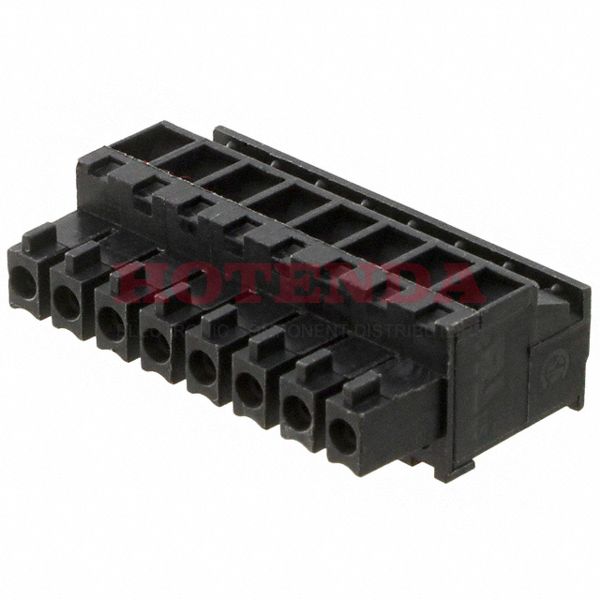

Bulk 0.150 3.81mm Black 1 Levels Free Hanging (In-Line) Plug, Female Sockets Omnimate BC Polyamide (PA), Nylon, Glass Filled Tin Copper Alloy

SOT-23

1798130000 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 12 Weeks
Contact MaterialCopper Alloy
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material Nylon
Housing Material Polyamide (PA), Nylon, Glass Filled
Operating Temperature-50°C~120°C
PackagingBulk
Series Omnimate BC
Published 2004
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Termination Screw
Connector Type Terminal Block
Type Plug, Female Sockets
Color Black
Number of Rows 1
Voltage - Rated 300V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.150 3.81mm
Orientation Straight
Ingress ProtectionIP20
Insulation Height 0.411 10.44mm
Current Rating17.5A
Termination Style Screw - Clamping Yoke (Tension Sleeve)
Approval Agency CSA, cURus
Number of Contacts 8
UL Flammability Code 94V-0
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 16 AWG
Wire/Cable Gauge 16 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 16-28 AWG
Voltage - IEC 320V
Torque - Screw 0.2-0.25 Nm (1.7-2.2 Lb-In)
Plug Wire Entry 90°
Wire Gauge or Range - mm² 0.2-1.5mm2
Current - IEC 17.5A
Screw Size M2
Stripping Length 7mm
Height 12.5mm
Length 31mm
Width 10.4mm
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
Radiation HardeningNo
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:1007 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$7.13000$7.13
10$5.43700$54.37
25$5.09240$127.31
50$4.52640$226.32
100$4.42800$442.8
250$4.08360$1020.9
500$3.69000$1845

1798130000 Product Details

1798130000 Overview


This product is packaged in a Terminal Block box.Free Hanging (In-Line) indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the Omnimate BC Series.By Cable, Free Hanging, the part is mounted.Operating temperature is set to -50°C~120°C.It is a part that shares many benefits with other products from the Plug, Female Sockets line.

1798130000 Features


Omnimate BC series


1798130000 Applications


There are a lot of Weidmüller
1798130000 Terminal Blocks applications.


  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
