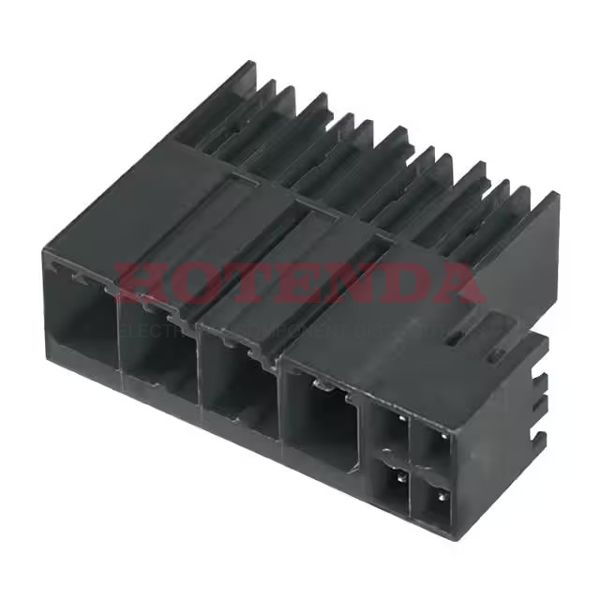

Name: 1157380000
Brand: Weidmüller
SKU: 1157380000
Price: 6.94000 USD
Availability: InStock

new-10%

1157380000

Manufacturer part number:1157380000

Manufacturer:Weidmüller

Description:1157380000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1157380000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mounting Type	Through Hole
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon, Glass Filled
Operating Temperature	-50°C~130°C
Packaging	Bulk
Series	Omnimate SV
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	12
Color	Black
Number of Rows	1
Voltage - Rated	300V
Pitch	0.300 7.62mm
Ingress Protection	IP20
Insulation Height	0.449 11.40mm
Current Rating	35A
Termination Style	Solder
Approval Agency	CSA, cURus
Contact Tail Length	0.138 3.50mm
Number of Levels	Hybrid
Number of Poles	4
Contact Mating Finish	Tin
Current - UL	33A
Voltage - IEC	1kV
Positions Per Level	12 (4 Power + 8 Signal)
Header Orientation	90°, Right Angle
Current - IEC	41A
Hole Diameter	1.3 mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1157380000 Product Details

1157380000 Overview

This device has a Through Hole mounting type.Packaging is performed using a Bulk case.There is a product in the Omnimate SV Series.Device runs in -50°C~130°C operating temperature.There are many benefits that this part shares with other Header, Male Pins, Shrouded (4 Side) products as well.
