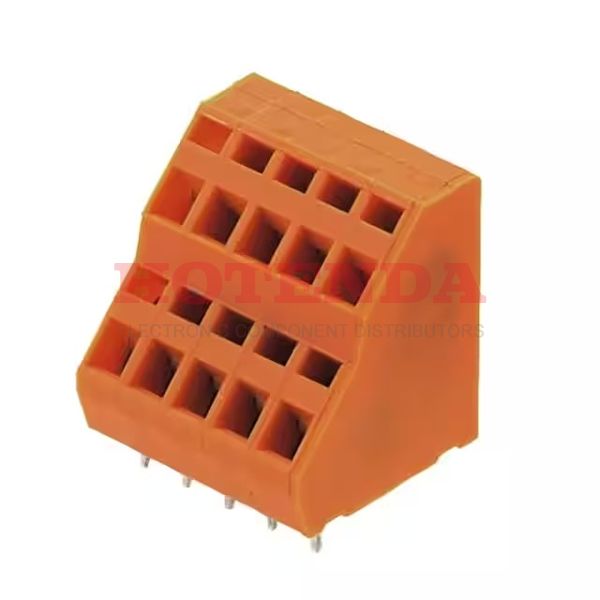

Name: 1782500000
Brand: Weidmüller
SKU: 1782500000
Price: 13.46000 USD
Availability: InStock

new

1782500000

Manufacturer part number:1782500000

Manufacturer:Weidmüller

Description:0.200 5.08mm Orange Bulk Polyamide (PA), Nylon Through Hole 45° (135°) Angle with Board Screwless - Spring Cage, Tension Clamp 2 Levels 14-24 AWG Omnimate LMZF

Case Package:SOT-23

Datasheet:1782500000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Contact Material - Plating	Copper Alloy - Tin Plated
Operating Temperature	-50°C~100°C
Packaging	Bulk
Series	Omnimate LMZF
Published	2011
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	PCB, Terminal Block
Color	Orange
Number of Rows	2
Voltage - Rated	300V
Additional Feature	POLYAMIDE, 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Current Rating	10A
Wire Gauge	14-24 AWG
Number of Levels	2
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	14 AWG
Wire/Cable Gauge	14 AWG
Number of Poles	26
Number of Decks	2
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Positions Per Level	13
Number of Ways	26
Safety Approval	UL; VDE; CSA
Mating Orientation	45° (135°) Angle with Board
Wire Termination	Screwless - Spring Cage, Tension Clamp
Hole Diameter	1.3 mm
Stripping Length	7.5mm
Fastening Method	SPRING LOADED
REACH SVHC	Unknown
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-2

1782500000 Product Details

1782500000 Overview

It comes in PCB, Terminal Block packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the Omnimate LMZF Series of products.In addition, there are other features such as POLYAMIDE, 94V-0, to mention only a few.The part is mounted by Through Hole.The device runs in -50°C~100°C Operating Temperature.
