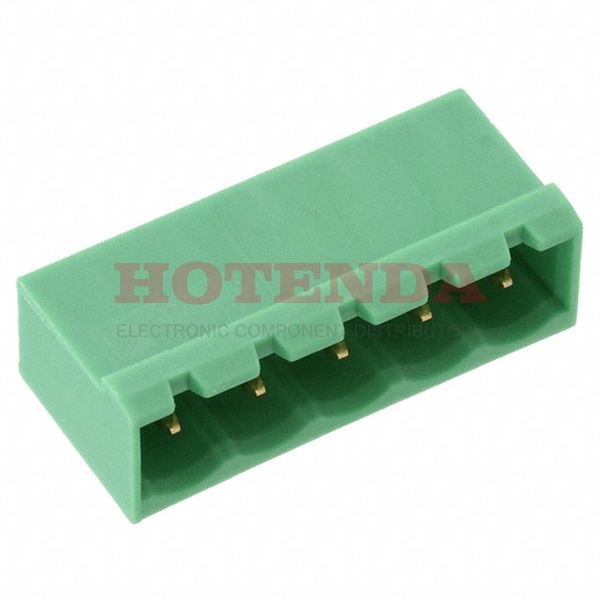

Name: 1748222
Brand: Phoenix Contact
SKU: 1748222
Price: 2.89000 USD
Availability: InStock

new-10%

1748222

Manufacturer part number:1748222

Manufacturer:Phoenix Contact

Description:1748222 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1748222 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Gold
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Weight	24.999999g
Packaging	Bulk
Published	2011
Series	COMBICON MSTBA
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	5
Color	Green
Number of Rows	1
Voltage - Rated	250V
Pitch	0.200 5.08mm
Insulation Height	0.339 8.61mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.138 3.50mm
Number of Levels	1
Current	15A
Number of Decks	1
Voltage - IEC	400V
Number of Ways	5
Header Orientation	90°, Right Angle
Current - IEC	12A
Height	12.1mm
Length	12mm
Width	27.32mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1748222 Product Details

1748222 Overview

Packaging is in the form of Plug.Through Hole indicates that the device is mounted.The product is packaged in a Bulk case.As a product of the COMBICON MSTBA Series, it can be found in this category.In this case, Through Hole mounts the part.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (4 Side) products.
