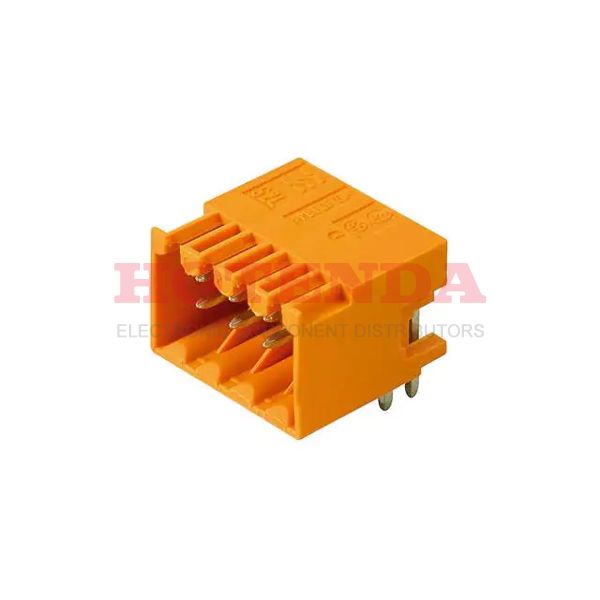

Name: 1727840000
Brand: Weidmüller
SKU: 1727840000
Price: 2.16000 USD
Availability: InStock

new-10%

1727840000

Manufacturer part number:1727840000

Manufacturer:Weidmüller

Description:1727840000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1727840000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate S2L
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	8
Color	Orange
Number of Rows	1
Voltage - Rated	50V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Total Number of Contacts	8
Orientation	Right Angle
Ingress Protection	IP10
Depth	14.2mm
Insulation Height	0.410 10.41mm
Current Rating	9A
Termination Style	Solder
Approval Agency	CSA, UR
Insulation Resistance	1MOhm
Voltage	150V
Contact Tail Length	0.138 3.50mm
Max Current Rating	10A
Number of Levels	2
Current	7A
Number of Poles	8
Contact Mating Finish	Tin
Voltage - IEC	250V
Positions Per Level	4
Header Orientation	90°, Right Angle
Hole Diameter	1 mm
Length	29.4mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1727840000 Product Details

1727840000 Overview

This device has a Through Hole mounting type.We use a Bulk case to package the product.It is part of the Omnimate S2L Series of products.It is mounted by Through Hole.Device runs at -50°C~100°C Operating Temperature.There are many benefits shared between this part and other Header, Male Pins, Shrouded (4 Side) products.
