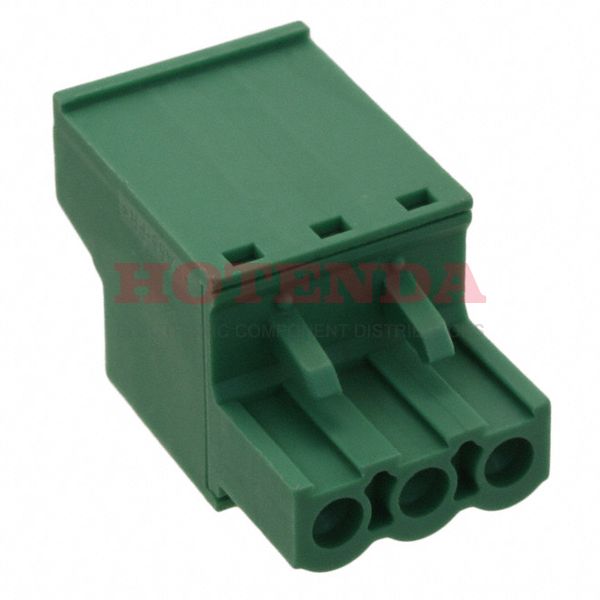

Name: 1777293
Brand: Phoenix Contact
SKU: 1777293
Price: 9.34000 USD
Availability: InStock

new

1777293

Manufacturer part number:1777293

Manufacturer:Phoenix Contact

Description:1777293 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1777293 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	134.000003g
Packaging	Bulk
Published	2003
Series	COMBICON FRONT-MSTB
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
Pitch	0.200 5.08mm
Orientation	Straight
Depth	27.5mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Pressure Clip
Approval Agency	CB, CSA, VDE, cULus
Number of Contacts	3
Voltage	300V
Max Supply Voltage	320V
Max Current Rating	12A
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Wire/Cable Gauge	12 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	3
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Screw Size	M2.5
Wire Cross Section	2.5 mm2
Height	15.24mm
Length	15.24mm
Width	27.2mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1777293 Product Details

1777293 Overview

You'll get Screw, Socket packages.There is a mounting type of Free Hanging (In-Line) for this device.An Bulk case is utilized for packaging the product.The product is a member of the COMBICON FRONT-MSTB Series.Additionally, there are other features such as PA, 94V-0.It is more powerful in many ways due to its Retention Latches (Non-Wire Side) feature.By Cable, Free Hanging, the part is mounted.This chip should not be supplied with voltages greater than zero.There are a lot of similarities between this part and other Plug, Female Sockets products.
