Name: 1720010000
Brand: Weidmüller
SKU: 1720010000
Price: 2.55000 USD
Availability: InStock

new-10%

1720010000

Manufacturer part number:1720010000

Manufacturer:Weidmüller

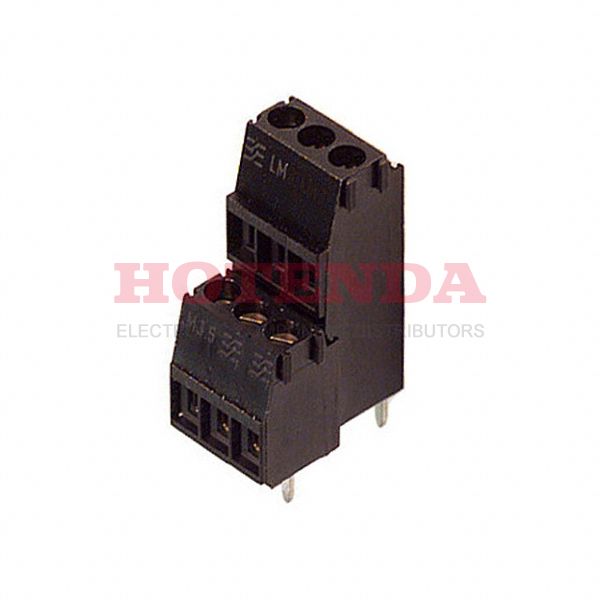

Description:0.138 3.50mm Black Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Clamping Yoke, Tension Sleeve 2 Levels 14-22 AWG Omnimate LM

Case Package:SOT-23

Datasheet:1720010000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Copper Tin Alloy - Tin Plated
Operating Temperature	-20°C~100°C
Packaging	Bulk
Series	Omnimate LM
Published	2002
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
ECCN Code	EAR99
Color	Black
Number of Rows	2
Additional Feature	LOW PROFILE
Pitch	0.138 3.50mm
Orientation	Straight
Number of Contacts	6
Wire Gauge	14-22 AWG
Voltage	300V
Number of Levels	2
Current	10A
Wire Gauge (Max)	22 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	2
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.2-0.25 Nm (1.7-2.2 Lb-In)
Positions Per Level	3
Number of Ways	6
Safety Approval	UL; VDE; CSA
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Clamping Yoke, Tension Sleeve
Screw Thread	M2
Height	24.1mm
Width	16.8mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-2
Lead Free	Lead Free

1720010000 Product Details

1720010000 Overview

This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Omnimate LM Series.Other features include LOW PROFILE, to name just a few.There is a mounting hole at Through Hole.Devices operate at -20°C~100°C operating temperatures.
