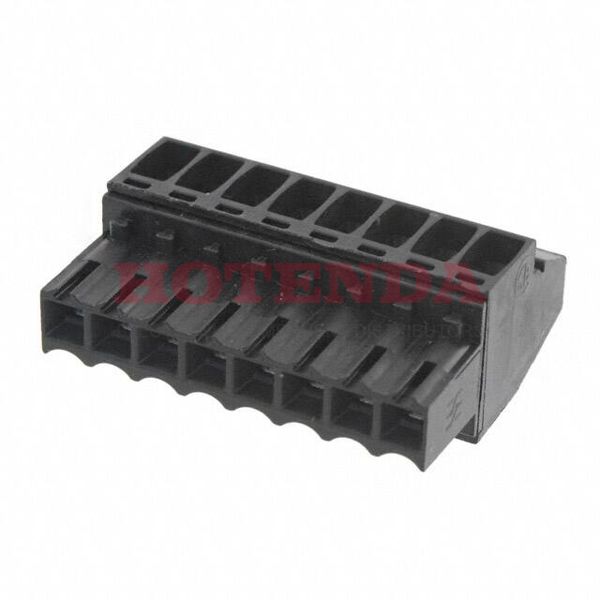

Name: 1638840000
Brand: Weidmüller
SKU: 1638840000
Price: 9.11000 USD
Availability: InStock

new

1638840000

Manufacturer part number:1638840000

Manufacturer:Weidmüller

Description:1638840000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1638840000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	PBT
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate BL
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
Type	Plug, Female Sockets
Color	Black
Number of Rows	1
Voltage - Rated	300V
Additional Feature	HIGH DENSITY
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Total Number of Contacts	8
Orientation	Straight
Ingress Protection	IP20
Depth	12mm
Insulation Height	0.884 22.45mm
Current Rating	12A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Approval Agency	CSA
UL Flammability Code	94V-0
Voltage	300V
Max Supply Voltage	300V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	14 AWG
Wire/Cable Gauge	28 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	14-28 AWG
Voltage - IEC	320V
Torque - Screw	0.2-0.25 Nm (1.7-2.2 Lb-In)
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-1.5mm2
Current - IEC	12A
Number of Positions Per Level	8
Screw Size	M2
Stripping Length	6mm
Length	28mm
Width	11.6mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1638840000 Product Details

1638840000 Overview

The device's mounting type is Free Hanging (In-Line).The product is packaged in a Bulk case.The product is part of the Omnimate BL Series.Further, there are features such as HIGH DENSITY, to name only a few.This part is mounted by Cable, Free Hanging. Operating temperature is set to -50°C~100°C.This chip should not be supplied with voltage greater than 300V volts.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.
