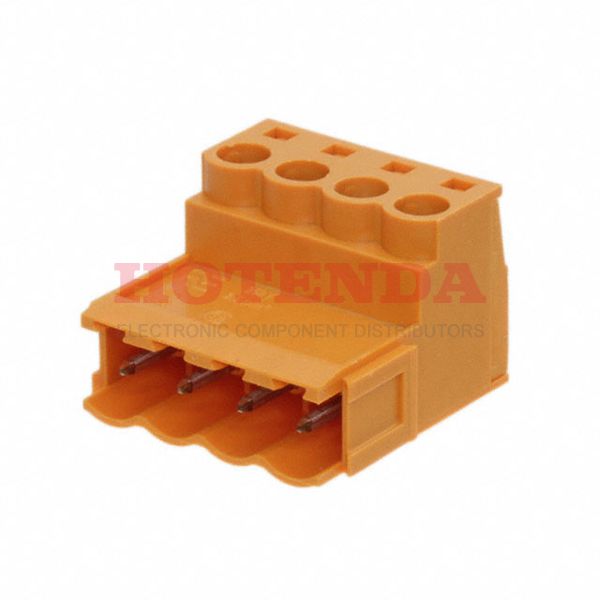

Name: 1627260000
Brand: Weidmüller
SKU: 1627260000
Price: 5.33000 USD
Availability: InStock

new-10%

1627260000

Manufacturer part number:1627260000

Manufacturer:Weidmüller

Description:1627260000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1627260000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2008
Series	Omnimate SL
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
Type	Plug, Male Pins
Color	Orange
Number of Rows	1
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Orientation	Right Angle
Insulation Height	0.598 15.19mm
Current Rating	16A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Approval Agency	CSA, UR
Number of Contacts	4
Insulation Resistance	1MOhm
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Current - UL	14A
Voltage - IEC	400V
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Current - IEC	21.5A
Screw Size	M2.5
Stripping Length	7mm
Height	15.3mm
Length	22.3mm
Width	22.3mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1627260000 Product Details

1627260000 Overview

The mounting type of the device is Free Hanging (In-Line).The product is packaged in a Bulk case.Omnimate SL Series product.There's a Cable, Free Hanging mount on the part.The device is operating at -50°C~100°C Operating Temperature.There are a number of benefits that this part has in common with other Plug, Male Pins products.
