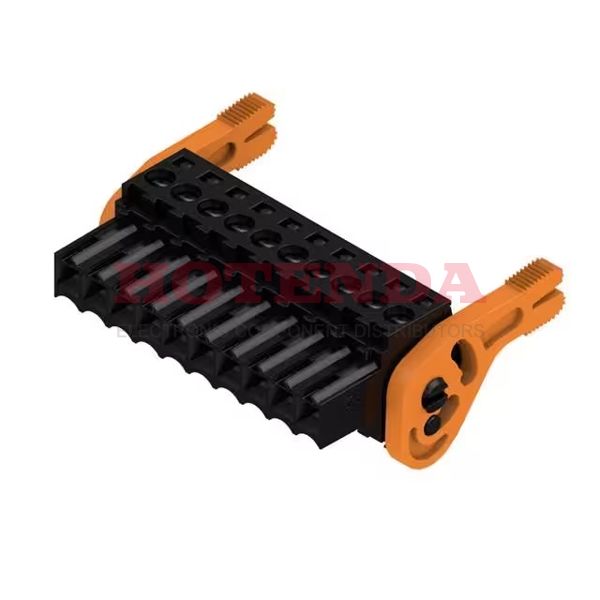

Name: 1630730000
Brand: Weidmüller
SKU: 1630730000
Price: 3.50000 USD
Availability: InStock

new-10%

1630730000

Manufacturer part number:1630730000

Manufacturer:Weidmüller

Description:1630730000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1630730000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2002
Series	Omnimate BL
Feature	Retention Latches
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Type	Header, Female Sockets
Color	Orange
Number of Rows	1
Voltage - Rated	300V
Additional Feature	STAGGERED CONFIGURATION
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Total Number of Contacts	4
Depth	10.3mm
Insulation Height	0.797 20.24mm
Current Rating	20A
Termination Style	Solder
Approval Agency	CSA, UR
Voltage	300V
Contact Tail Length	0.126 3.20mm
Max Current Rating	10A
Number of Levels	1
Current	15A
Number of Poles	4
Contact Mating Finish	Tin
Voltage - IEC	400V
Header Orientation	Vertical
Current - IEC	23A
Hole Diameter	1.3 mm
Length	20.32mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1630730000 Product Details

1630730000 Overview

Through Hole is the mount type.The product is packaged in a Bulk case.This product is part of the Omnimate BL Series.Additionally, there are other features, such as STAGGERED CONFIGURATION.As a result of its Retention Latches feature, it possesses a great deal of power.The part is mounted by Through Hole.Device runs at -50°C~100°C Operating Temperature.Many Header, Female Sockets products share the same benefits as this part.
