Name: 1748120000
Brand: Weidmüller
SKU: 1748120000
Price: 17.18000 USD
Availability: InStock

new

1748120000

Manufacturer part number:1748120000

Manufacturer:Weidmüller

Description:1748120000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1748120000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate B2L
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Termination	Crimp
Type	Plug, Female Sockets
Number of Positions	28
Color	Orange
Number of Rows	2
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Total Number of Contacts	28
Orientation	Straight
Ingress Protection	IP20
Depth	20.6mm
Insulation Height	0.618 15.70mm
Termination Style	Screwless - Spring Cage, Tension Clamp
Insulation Resistance	1MOhm
Voltage	150V
Max Supply Voltage	150V
Max Current Rating	10A
Number of Levels	2
Current	10A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	18 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	16-28 AWG
Voltage - IEC	250V
Positions Per Level	14
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1mm2
Wire Strip Length	7mm
Current - IEC	10.3A
Number of Positions Per Level	14
Length	56mm
Width	15.6mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

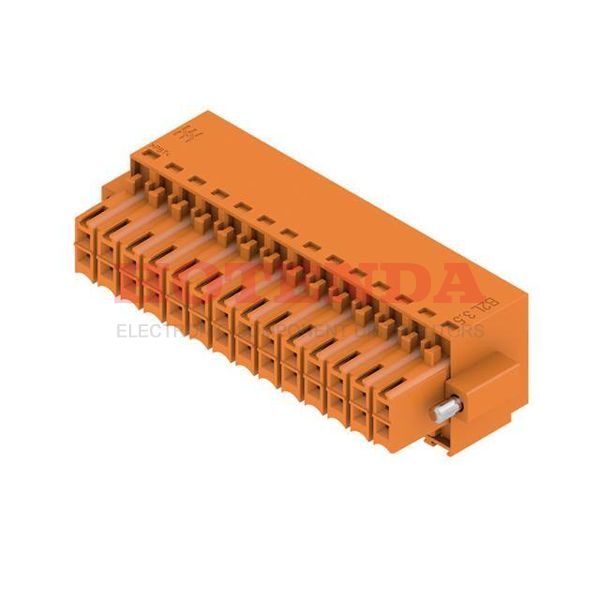

1748120000 Product Details

1748120000 Overview

The device's mounting type is Free Hanging (In-Line).To package the product, we use a Bulk case.Product number Omnimate B2L belongs to the Omnimate B2L Series.There are a number of advantages to its Mating Flange feature.Free Hanging, Panel is used to mount the part.As a result, the device runs at -50°C~100°C Operating Temperature.This chip should not be operated above 150V volts.There are a lot of advantages this part has in common with other Plug, Female Sockets parts.
