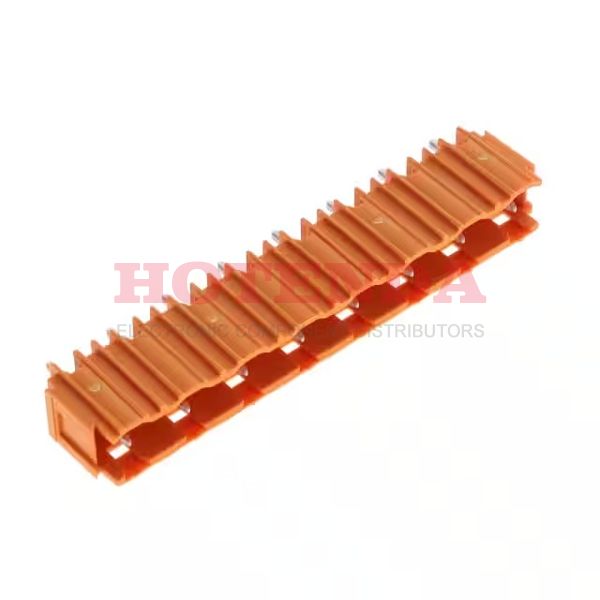

Name: 1629190000
Brand: Weidmüller
SKU: 1629190000
Price: 4.84000 USD
Availability: InStock

new-10%

1629190000

Manufacturer part number:1629190000

Manufacturer:Weidmüller

Description:1629190000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1629190000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2008
Series	Omnimate SL
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Type	Header, Male Pins, Shrouded (4 Side)
Color	Orange
Number of Rows	1
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.295 7.50mm
Total Number of Contacts	8
Insulation Height	0.472 12.00mm
Current Rating	16A
Termination Style	Solder
Approval Agency	CSA, UR
UL Flammability Code	94V-0
Insulation Resistance	1MOhm
Voltage	300V
Contact Tail Length	0.126 3.20mm
Number of Levels	1
Current	10A
Number of Poles	8
Contact Mating Finish	Tin
Current - UL	15A
Voltage - IEC	800V
Header Orientation	Vertical
Current - IEC	18.5A
Hole Diameter	1.3 mm
Height	12mm
Length	62mm
Width	8.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1629190000 Product Details

1629190000 Overview

Through Hole is the mount type.It is necessary to use a Bulk case for packaging the product.This product is from the Omnimate SL Series.Through Hole is mounting the part.The device is operating at -50°C~100°C Operating Temperature.There are many benefits that this part shares with other Header, Male Pins, Shrouded (4 Side) products as well.
