Name: 1836888
Brand: Phoenix Contact
SKU: 1836888
Price: 11.13000 USD
Availability: InStock

new

1836888

Manufacturer part number:1836888

Manufacturer:Phoenix Contact

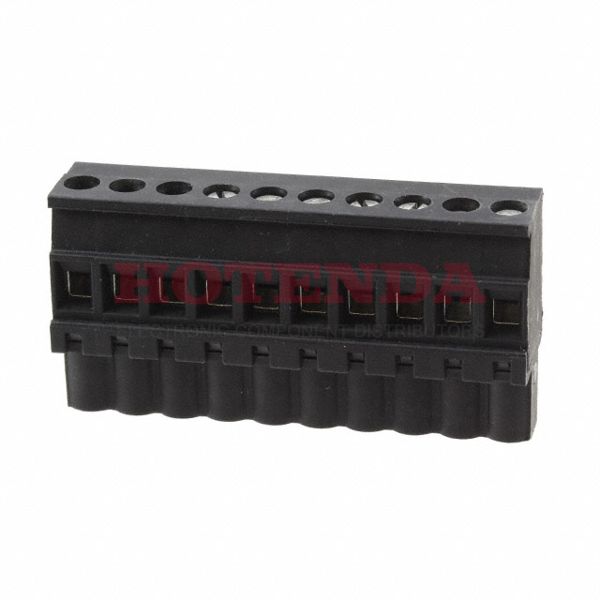

Description:Bulk 0.200 5.08mm Black 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON MVSTBW Tin

Case Package:SOT-23

Datasheet:1836888 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Weight	22.149993g
Packaging	Bulk
Series	COMBICON MVSTBW
Published	2011
Feature	Retention Latches (Non-Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Number of Positions	10
Color	Black
Voltage - Rated	300V
Additional Feature	SAFETY APPROVAL: VDE
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Insulation Height	1.024 26.01mm
Reach Compliance Code	not_compliant
Current Rating	15A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	250V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	10
Safety Approval	CB; CCA; CSA; CUL; GOST; UL
Plug Wire Entry	270°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	12A
Screw Size	M3
Wire Cross Section	2.5 mm2
RoHS Status	RoHS Compliant

1836888 Product Details

1836888 Overview

Currently, it is packaged in Screw.The mounting type of the device is Free Hanging (In-Line).A Bulk case is used to package the product.A product of the COMBICON MVSTBW Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as SAFETY APPROVAL: VDE, to name a few.A number of features make the Retention Latches (Non-Wire Side) feature more powerful.Free Hanging represents the mounting point for the part.As with other Plug, Female Sockets products, this part also offers a wide range of benefits.
