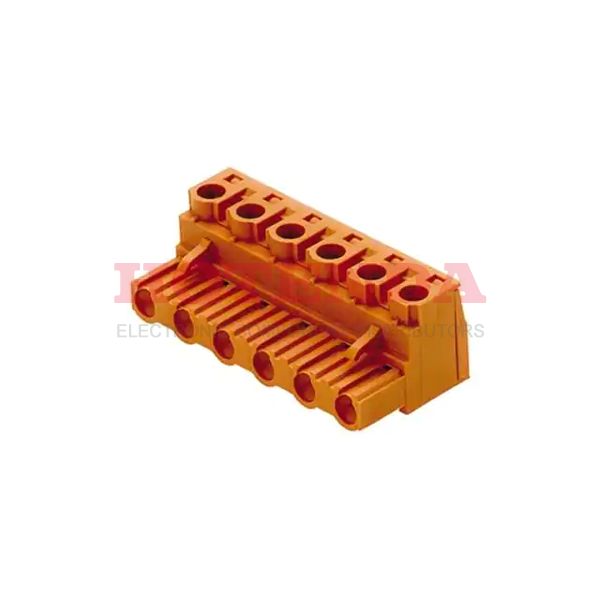

Name: 1627920000
Brand: Weidmüller
SKU: 1627920000
Price: 2.23000 USD
Availability: InStock

new-10%

1627920000

Manufacturer part number:1627920000

Manufacturer:Weidmüller

Description:1627920000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1627920000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate BL
JESD-609 Code	e3
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Termination	Screw
Type	Plug, Female Sockets
Color	Orange
Number of Rows	1
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.295 7.50mm
Total Number of Contacts	2
Orientation	Right Angle
Insulation Height	0.598 15.19mm
Current Rating	18.5A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Approval Agency	CSA, UR
UL Flammability Code	94V-0
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Current - UL	15A
Voltage - IEC	800V
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Number of Positions Per Level	2
Screw Size	M2.5
Stripping Length	7mm
Height	15.2mm
Length	15mm
Width	20mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1627920000 Product Details

1627920000 Overview

Mounting type Free Hanging (In-Line) is selected for the device.Packaged in a Bulk case.There is a product in the Omnimate BL Series.This feature makes it more powerful in a number of ways due to its Retention Latches (Non-Wire Side) feature.It's mounted by Cable, Free Hanging.-50°C~100°C Operating Temperature is the default operating temperature for the device.In addition to its benefits, this part also shares many with the other products in the Plug, Female Sockets series.
