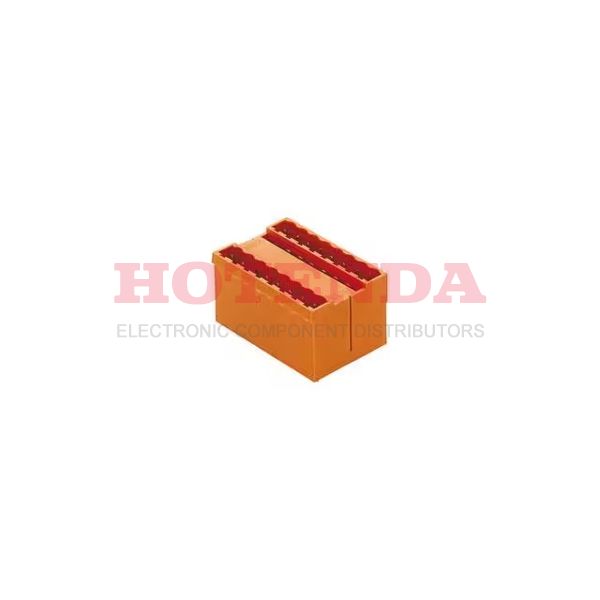

Name: 1614870000
Brand: Weidmüller
SKU: 1614870000
Price: 7.49000 USD
Availability: InStock

new

1614870000

Manufacturer part number:1614870000

Manufacturer:Weidmüller

Description:1614870000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1614870000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2008
Series	Omnimate SL
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Type	Header, Male Pins, Shrouded (4 Side)
Color	Orange
Number of Rows	2
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.197 5.00mm
Total Number of Contacts	16
Insulation Height	0.866 22.00mm
Current Rating	10A
Termination Style	Solder
Approval Agency	CSA, UR
UL Flammability Code	94V-0
Insulation Resistance	1MOhm
Voltage	300V
Contact Tail Length	0.126 3.20mm
Number of Levels	2
Current	10A
Number of Poles	16
Contact Mating Finish	Tin
Voltage - IEC	400V
Positions Per Level	8
Header Orientation	Vertical
Current - IEC	11A
Hole Diameter	1.3 mm
Height	22mm
Length	42mm
Width	28.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1614870000 Product Details

1614870000 Overview

Through Hole is the mounting type of the device.A Bulk case is used to package the product.Among the products in the Omnimate SL Series, it is one of the most popular.There is a mounting hole at Through Hole.It runs at -50°C~100°C Operating Temperature.There are many benefits shared between this part and other Header, Male Pins, Shrouded (4 Side) products.
