Name: 1596170000
Brand: Weidmüller
SKU: 1596170000
Price: 3.64000 USD
Availability: InStock

new-10%

1596170000

Manufacturer part number:1596170000

Manufacturer:Weidmüller

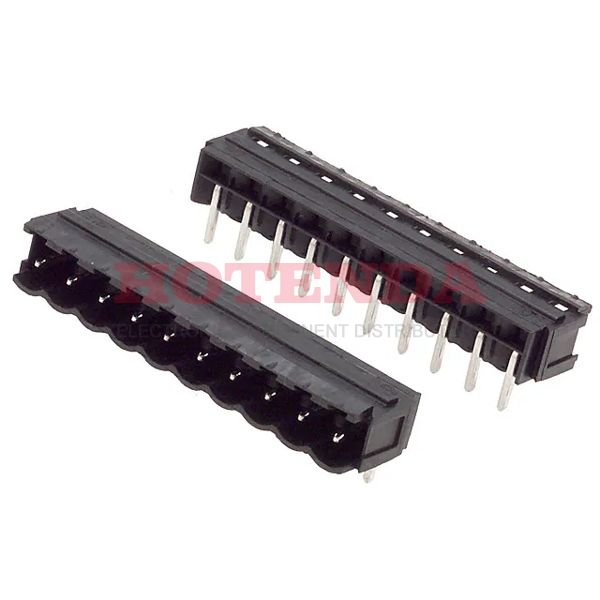

Description:Bulk 0.197 5.00mm Black 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Omnimate SL Polybutylene Terephthalate (PBT) Tin Copper Alloy

Case Package:SOT-23

Datasheet:1596170000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-20°C~120°C
Packaging	Bulk
Series	Omnimate SL
Published	2002
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Type	Header, Male Pins, Shrouded (4 Side)
Color	Black
Number of Rows	1
Gender	Male
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.197 5.00mm
Total Number of Contacts	10
Insulation Height	0.335 8.51mm
Current Rating	15A
Termination Style	Solder
UL Flammability Code	94V-0
Insulation Resistance	1MOhm
Voltage	300V
Contact Tail Length	0.177 4.50mm
Number of Levels	1
Current	15A
Contact Mating Finish	Tin
Voltage - UL	300V
Voltage - IEC	250V
Header Orientation	90°, Right Angle
Current - IEC	12A
Number of Positions Per Level	10
Height	8.5mm
Width	12mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1596170000 Product Details

1596170000 Overview

Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Omnimate SL Series.It is mounted by Through Hole.It operates at an operating temperature of -20°C~120°C.Compared to other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits to offer.
