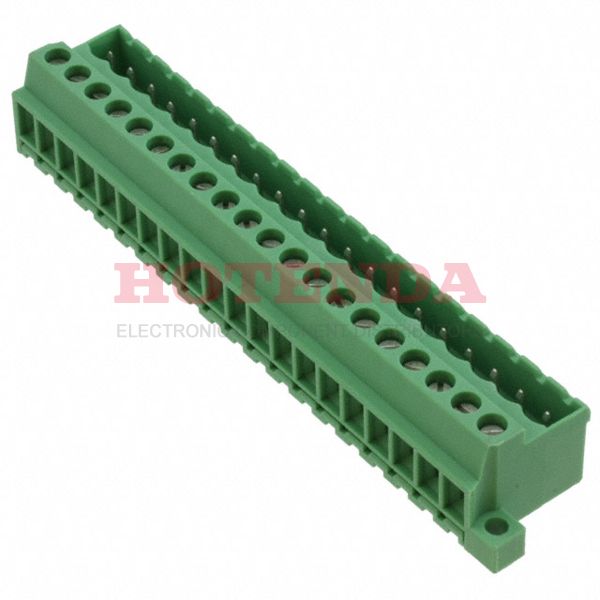

Name: 1788716
Brand: Phoenix Contact
SKU: 1788716
Price: 40.72000 USD
Availability: InStock

new

1788716

Manufacturer part number:1788716

Manufacturer:Phoenix Contact

Description:1788716 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1788716 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Cable
Mounting Type	Board Mount
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	206.999996g
Packaging	Bulk
Published	2010
Series	COMBICON MVSTBU
Feature	Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Receptacle, Male Pins
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	320V
Additional Feature	UL 94V-0, PA, SAFETY APPROVAL: UL; VDE
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Straight
Depth	20.4mm
Insulation Height	0.681 17.30mm
Reach Compliance Code	not_compliant
Current Rating	12A
Termination Style	Screw
Approval Agency	CB, CSA, UL, VDE
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	20
Safety Approval	CB; CCA; CSA; CUL; EAC
Wire Gauge or Range - mm²	0.2-2.5mm2
Current - IEC	12A
Number of Positions Per Level	20
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	20.4mm
Length	7mm
Width	17.3mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-2

1788716 Product Details

1788716 Overview

The packaging is Plug.Board Mount is the mounting type for the device.Packaged in a Bulk case.Specifically, it is one of the products in the COMBICON MVSTBU Series.In addition, there are other features such as UL 94V-0, PA, SAFETY APPROVAL: UL; VDE, to mention only a few.A number of benefits can be derived from the Mounting Flange feature of this application.The part is mounted by Cable.There are a lot of advantages this part has in common with other Receptacle, Male Pins parts.
